| Brand Name: | Yuantong |
| Model Number: | YT-GF500W |
| MOQ: | 1 |
| Price: | USD 285-400 |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pieces per month |
Description
1. It adopts the standard international standard SIP2.0 public protocol, which has excellent compatibility and functional scalability, and can communicate with public communication protocol systems such as converged communication systems and telephone systems. The SIP protocol decoding module and the constant voltage power amplifier module are integrated into one function, the network signal is remotely automatically controlled, the audio file is transmitted through the network, and the local playback is performed, and the sound quality reaches CD quality; independent IP address;
2. Standard 1 10/100M RJ45 network switch interface, supporting LAN and WAN; the device adopts industrial-grade dual-core processing chip (
(ARM+DSP), the startup time is less than 1S, and supports communication protocols: TCP, IP, SIP, UDP, VOIP, IGMP, DNS, DHCP, FTP.
3. The built-in network IP decoding module can play network music and call functions in real time; the network delay time of playback and call functions is less than 30mS.
4. With built-in constant voltage/resistance power amplifier output, output mode 100V, 70V, 4~16Ω, output power adjustable

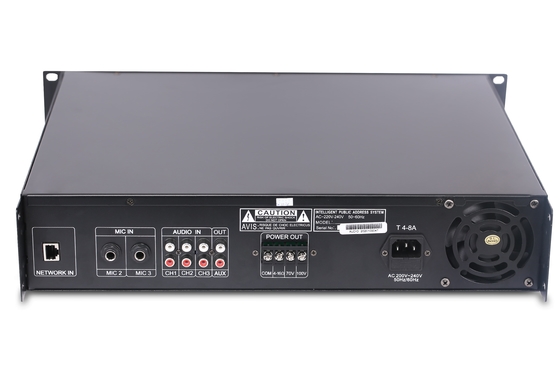

5. 2-way microphone input, 2-way line input, 1-way RJ45 Network input

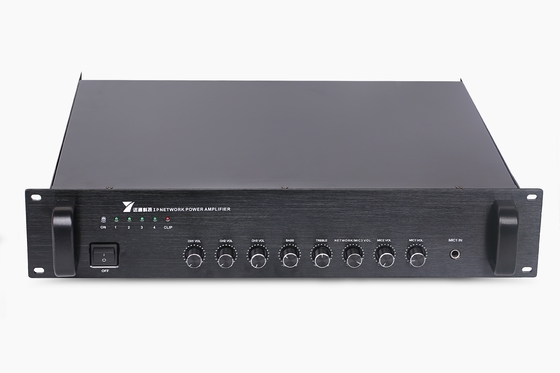

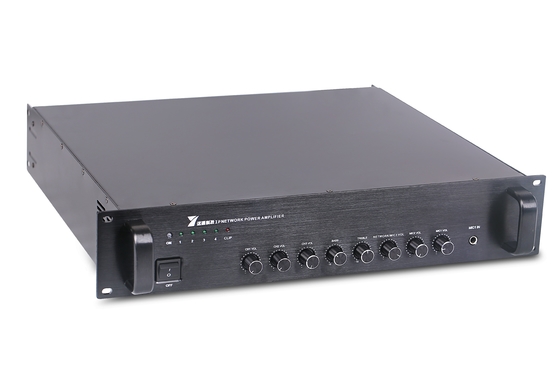

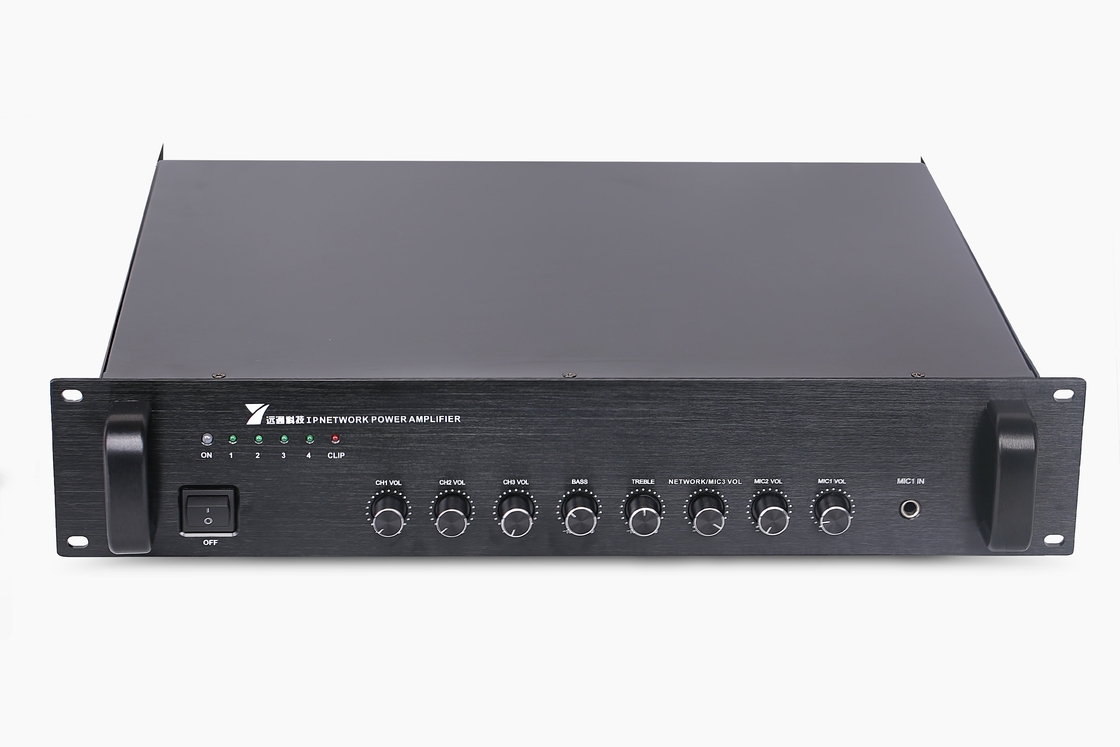

6. Equipped with power indicator light, protection indicator light, working signal indicator light and peak clipping indicator light, the working status of the amplifier is clear at a glance.
7. Standard chassis design, aluminum alloy panel, beautiful and practical
Specification
| Power | AC220V/50Hz |
| Interface |
RJ45, 10/100Base-TX |
| Protocol |
TCP,IP,SIP ,VOIP,IGMP,DNS,DHCP,FTP |
| Noise ratio | Microphone>68dB Line:>82dB |
| Speech Coding |
G.711-a,G.711-u,G.729,G.723.1,G.726 |
| Total Harmonic Distortion |
<0.1% at 1KHz |
| Frequency Response |
60Hz-18KHz(±2dB) |
| tone | Bass ±10dB at 100Hz, Treble: ±10dBB at 10KHz |
| Microphone Input Sensitivity & Impedance | 8mV/600Ω unbalanced |
| Line Input Sensitivity & Impedance | 250mV/10KΩ unbalanced |
| Line output sensitivity & impedance | 445mv/600Ω unbalanced |
| Mute adjustment |
0-38dB |
| Rated Power |
500W |
| Independent volume control for each input channel | High and low pitch control |
| Protection | Output short circuit, overcurrent, and overload protection alarms; |
|
|
| Brand Name: | Yuantong |
| Model Number: | YT-GF500W |
| MOQ: | 1 |
| Price: | USD 285-400 |
| Packaging Details: | Carton |
| Payment Terms: | T/T |
Description
1. It adopts the standard international standard SIP2.0 public protocol, which has excellent compatibility and functional scalability, and can communicate with public communication protocol systems such as converged communication systems and telephone systems. The SIP protocol decoding module and the constant voltage power amplifier module are integrated into one function, the network signal is remotely automatically controlled, the audio file is transmitted through the network, and the local playback is performed, and the sound quality reaches CD quality; independent IP address;
2. Standard 1 10/100M RJ45 network switch interface, supporting LAN and WAN; the device adopts industrial-grade dual-core processing chip (
(ARM+DSP), the startup time is less than 1S, and supports communication protocols: TCP, IP, SIP, UDP, VOIP, IGMP, DNS, DHCP, FTP.
3. The built-in network IP decoding module can play network music and call functions in real time; the network delay time of playback and call functions is less than 30mS.
4. With built-in constant voltage/resistance power amplifier output, output mode 100V, 70V, 4~16Ω, output power adjustable
5. 2-way microphone input, 2-way line input, 1-way RJ45 Network input
6. Equipped with power indicator light, protection indicator light, working signal indicator light and peak clipping indicator light, the working status of the amplifier is clear at a glance.
7. Standard chassis design, aluminum alloy panel, beautiful and practical
Specification
| Power | AC220V/50Hz |
| Interface |
RJ45, 10/100Base-TX |
| Protocol |
TCP,IP,SIP ,VOIP,IGMP,DNS,DHCP,FTP |
| Noise ratio | Microphone>68dB Line:>82dB |
| Speech Coding |
G.711-a,G.711-u,G.729,G.723.1,G.726 |
| Total Harmonic Distortion |
<0.1% at 1KHz |
| Frequency Response |
60Hz-18KHz(±2dB) |
| tone | Bass ±10dB at 100Hz, Treble: ±10dBB at 10KHz |
| Microphone Input Sensitivity & Impedance | 8mV/600Ω unbalanced |
| Line Input Sensitivity & Impedance | 250mV/10KΩ unbalanced |
| Line output sensitivity & impedance | 445mv/600Ω unbalanced |
| Mute adjustment |
0-38dB |
| Rated Power |
500W |
| Independent volume control for each input channel | High and low pitch control |
| Protection | Output short circuit, overcurrent, and overload protection alarms; |
