| Brand Name: | Yuantong |
| Model Number: | YT-DLSG30 |
| MOQ: | 1 |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs per month |

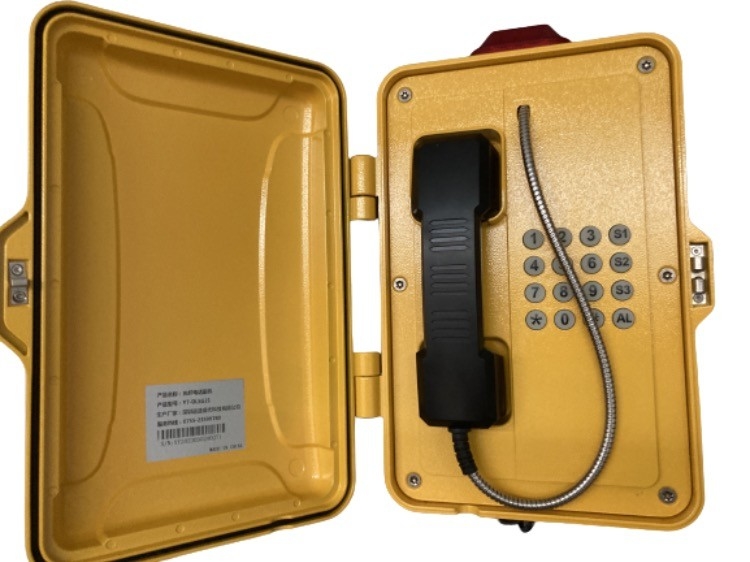

Heavy Duty SIP Outdoor
Weatherproof Phone Heavy Duty Telephones Outdoor Industrial Telephone for Power Plant
The weatherproof telephone is an emergency phone that specifically contained within a corrosion resistant cast aluminium alloy weatherproof case. With a door providing complete protection against dust and moisture ingress, resulting in a highly reliable product and ensure that the primary function of communications is always maintained. Extremely easy to install.
TECHNICAL SPECIFICATION
Analogue Version
Power Supply From the analogue telephone network
Supply Voltage 24 VDC to 65 VDC
Supply Current 20 mA DC to 100 mA DC
Ringer Volume – 80dB(A) at a distance of 1 m
– 110dB(A) at a distance of 1 m (for external horn speaker)
Dialing Method DTMF mode in accordance with ITU-T recommendation Q.23.
SIP Version
Power Supply PoE or 12V DC
Power Consumption -Idle:1.5W
-Active:1.8W
SIP Protocol SIP 2.0 (RFC3261)
Support Codec G.711 A/U, G.722 8000/16000, G.723, G.729
Communication Type Full duplex
Ringer volume – 90~95dB(A) at a distance of 1 m
– 110dB(A) at a distance of 1 m (for external horn speaker)
Ambient conditions
Protection type IP 68 as per EN60529
Operating temperature -40°C to +70°C
Storage temperature -45°C to +85°C
Application
We offer industrial grade outdoor weatherproof telephones with a rugged, weatherproof telephone enclosure..Housed in aluminum alloy box and manufactured to a high standard, this Waterproof Phone offers increased resistance to vandalism, and ensure that the primary function of communications is always maintained. It is suitable for use in Tunnel, metro, railway, LRT, speedway, marine, ship,offshore, mine, power plant, bridge etc. Extremely easy to install.
Package
| Unit Size: | 373 *282 *137(mm) |
| Carton Dimension: | 400 *352 *150(mm) |
| Packaging materials: | corrugated box, pearl cotton lining |
| Net Weight: | 8KG |
| Gross weight: | 9KG |
|
| Brand Name: | Yuantong |
| Model Number: | YT-DLSG30 |
| MOQ: | 1 |
| Price: | Negotiable |
| Packaging Details: | Carton |
| Payment Terms: | T/T |
Heavy Duty SIP Outdoor
Weatherproof Phone Heavy Duty Telephones Outdoor Industrial Telephone for Power Plant
The weatherproof telephone is an emergency phone that specifically contained within a corrosion resistant cast aluminium alloy weatherproof case. With a door providing complete protection against dust and moisture ingress, resulting in a highly reliable product and ensure that the primary function of communications is always maintained. Extremely easy to install.
TECHNICAL SPECIFICATION
Analogue Version
Power Supply From the analogue telephone network
Supply Voltage 24 VDC to 65 VDC
Supply Current 20 mA DC to 100 mA DC
Ringer Volume – 80dB(A) at a distance of 1 m
– 110dB(A) at a distance of 1 m (for external horn speaker)
Dialing Method DTMF mode in accordance with ITU-T recommendation Q.23.
SIP Version
Power Supply PoE or 12V DC
Power Consumption -Idle:1.5W
-Active:1.8W
SIP Protocol SIP 2.0 (RFC3261)
Support Codec G.711 A/U, G.722 8000/16000, G.723, G.729
Communication Type Full duplex
Ringer volume – 90~95dB(A) at a distance of 1 m
– 110dB(A) at a distance of 1 m (for external horn speaker)
Ambient conditions
Protection type IP 68 as per EN60529
Operating temperature -40°C to +70°C
Storage temperature -45°C to +85°C
Application
We offer industrial grade outdoor weatherproof telephones with a rugged, weatherproof telephone enclosure..Housed in aluminum alloy box and manufactured to a high standard, this Waterproof Phone offers increased resistance to vandalism, and ensure that the primary function of communications is always maintained. It is suitable for use in Tunnel, metro, railway, LRT, speedway, marine, ship,offshore, mine, power plant, bridge etc. Extremely easy to install.
Package
| Unit Size: | 373 *282 *137(mm) |
| Carton Dimension: | 400 *352 *150(mm) |
| Packaging materials: | corrugated box, pearl cotton lining |
| Net Weight: | 8KG |
| Gross weight: | 9KG |
