| Brand Name: | Yuantong |
| Model Number: | YT-DJ12 |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000 pcs per month |

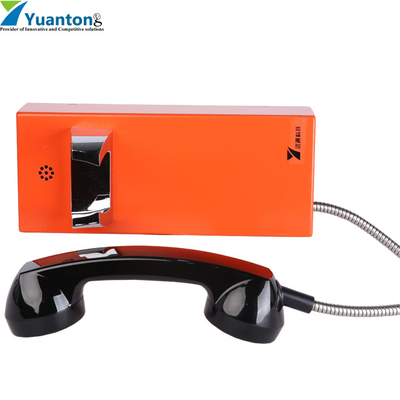

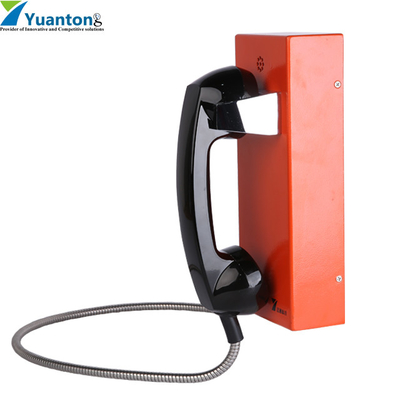

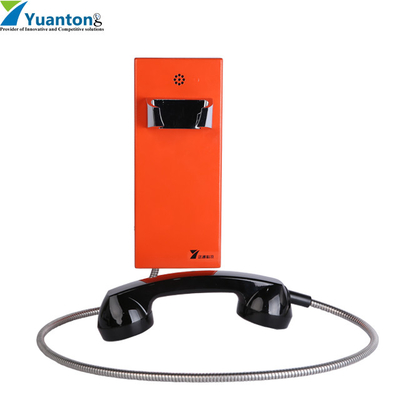

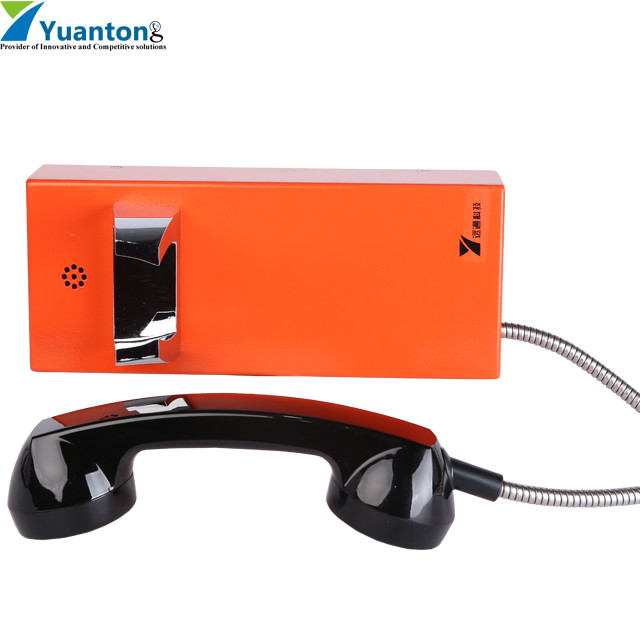

Speed Dial Emergency Hotline Phone Waterproof Vandal Resistant Telephone Bank Phone
The flush mount vandal resistant phone is housed in cold rolled steel boxes and manufactured to a high standard, increasing resistance to vandalism and ensuring that the primary function of communication is always maintained. Its designed to meet the needs of customers who have suffered losses due to vandalism. Suitable for parking lots, prisons, railway/subway platforms, hospitals, police stations, ATM machines, stadiums, outdoor buildings, etc.
Main Features:
Telephone Specification:
Casing Material- Stainless steel steel body
Ambient temperature- -30 degree to 60 degree
Atmospheric pressure- 86- 106 Kpa
Circumstance noise- ≤60dB(A)
Sound level of ringing- ≥70dB(A)
MTBF- 5-70000 hours
Standard frequency- low frequency group: 697. 770. 852. 941Hz,high frequency group: 1209, 1336, 1477Hz, frequency deviation: -1.5%~+1.5%
Call transmission index- (5KM) SLR ≤12,RLR≤-1, STMR≥10, output impedance is 600ohm
Call capability of phone- GB/T 15279-94
Defend grade- GB 4208-93 IP 66 / IP 67
Colors- RED, YELLOW, GREY
Weight- Up to 4.5 kg depending on option
SIP Version
Power Supply PoE or 12V DC
Power Consumption -Idle:1.5W -Active:1.8W
SIP Protocol SIP 2.0 (RFC3261)
Support Codec G.711 A/U, G.722 8000/16000,
Communication Type Full duplex
Ringer Volume – 90~95dB(A) at a distance of 1 m – 110dB(A) at a distance of 1 m (for external speaker)
Ambient conditions
Protection Type IP 66 as per EN60529
Operating Temperature -30°C to +70°C
Storage Temperature -40°C to +75°C
Technical Parameters
| Item | Vandal Resistant Telephone |
| Type | Industrial telephone |
| Handset | ABS Material With Armored Cord |
| Colors | Yellow, Red, Grey |
| Installation | Wall Mounting |
| Version | Analogue/SIP/GSM |
| Material | Cold Rolled Steel Or Stainless Steel |
| Usage | parking lots, prisons, hospitals, police stations, ATM machines,etc. |
Package
| Unit Size: | 280 *180 *120(mm) |
| Carton Dimension: | 350 *262 *150(mm) |
| Packaging materials: | corrugated box, pearl cotton lining |
| Net Weight: | 3.5KG |
| Gross weight: | 4KG |
|
|
| Brand Name: | Yuantong |
| Model Number: | YT-DJ12 |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Unit Size:280 *180 *120(mm),Carton Dimension:350 *262 *150(mm),Packaging materials:corrugated box, pearl cotton lining |
| Payment Terms: | L/C, T/T, Western Union |
Speed Dial Emergency Hotline Phone Waterproof Vandal Resistant Telephone Bank Phone
The flush mount vandal resistant phone is housed in cold rolled steel boxes and manufactured to a high standard, increasing resistance to vandalism and ensuring that the primary function of communication is always maintained. Its designed to meet the needs of customers who have suffered losses due to vandalism. Suitable for parking lots, prisons, railway/subway platforms, hospitals, police stations, ATM machines, stadiums, outdoor buildings, etc.
Main Features:
Telephone Specification:
Casing Material- Stainless steel steel body
Ambient temperature- -30 degree to 60 degree
Atmospheric pressure- 86- 106 Kpa
Circumstance noise- ≤60dB(A)
Sound level of ringing- ≥70dB(A)
MTBF- 5-70000 hours
Standard frequency- low frequency group: 697. 770. 852. 941Hz,high frequency group: 1209, 1336, 1477Hz, frequency deviation: -1.5%~+1.5%
Call transmission index- (5KM) SLR ≤12,RLR≤-1, STMR≥10, output impedance is 600ohm
Call capability of phone- GB/T 15279-94
Defend grade- GB 4208-93 IP 66 / IP 67
Colors- RED, YELLOW, GREY
Weight- Up to 4.5 kg depending on option
SIP Version
Power Supply PoE or 12V DC
Power Consumption -Idle:1.5W -Active:1.8W
SIP Protocol SIP 2.0 (RFC3261)
Support Codec G.711 A/U, G.722 8000/16000,
Communication Type Full duplex
Ringer Volume – 90~95dB(A) at a distance of 1 m – 110dB(A) at a distance of 1 m (for external speaker)
Ambient conditions
Protection Type IP 66 as per EN60529
Operating Temperature -30°C to +70°C
Storage Temperature -40°C to +75°C
Technical Parameters
| Item | Vandal Resistant Telephone |
| Type | Industrial telephone |
| Handset | ABS Material With Armored Cord |
| Colors | Yellow, Red, Grey |
| Installation | Wall Mounting |
| Version | Analogue/SIP/GSM |
| Material | Cold Rolled Steel Or Stainless Steel |
| Usage | parking lots, prisons, hospitals, police stations, ATM machines,etc. |
Package
| Unit Size: | 280 *180 *120(mm) |
| Carton Dimension: | 350 *262 *150(mm) |
| Packaging materials: | corrugated box, pearl cotton lining |
| Net Weight: | 3.5KG |
| Gross weight: | 4KG |
