| Brand Name: | Yuantong |
| Model Number: | YT-DJ13 |
| MOQ: | 2PCS |
| Price: | EXW USD 89/UNIT |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000PCS/ month |

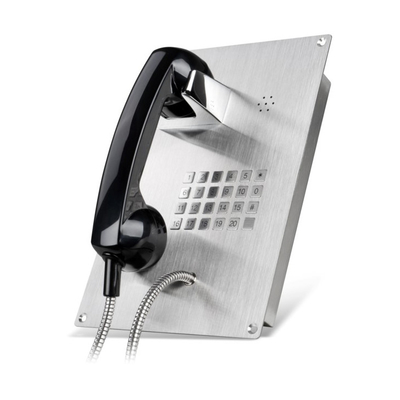

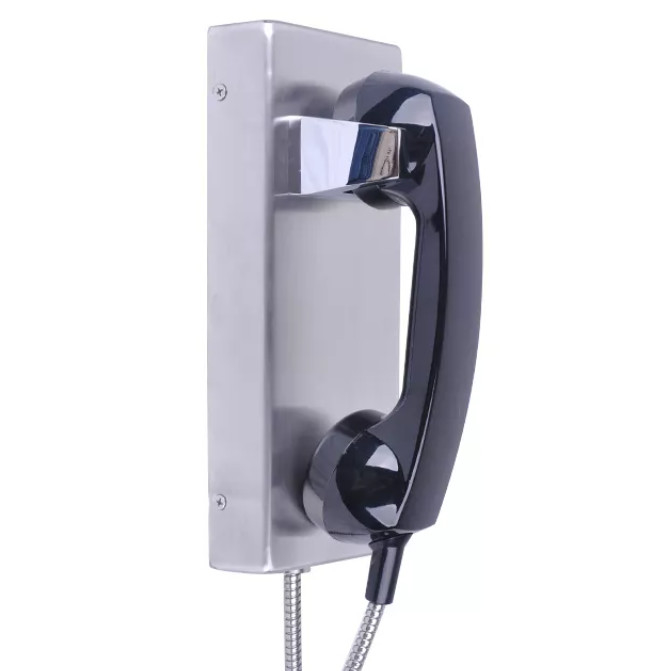

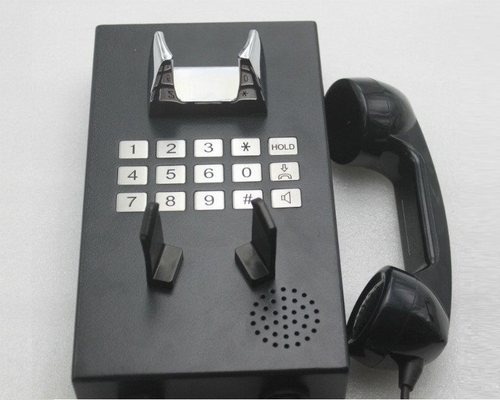

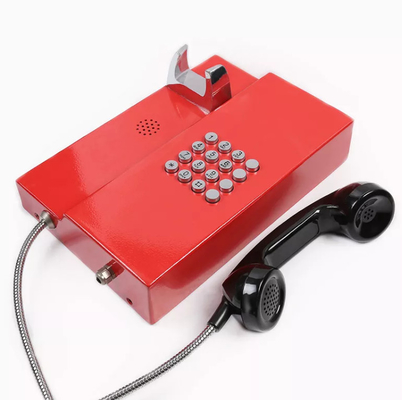

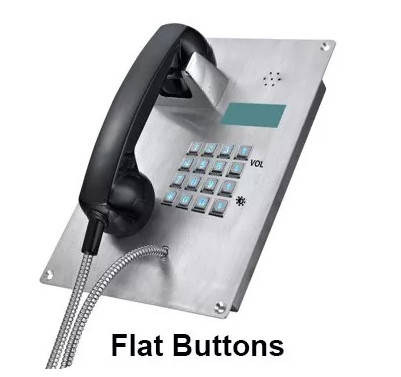

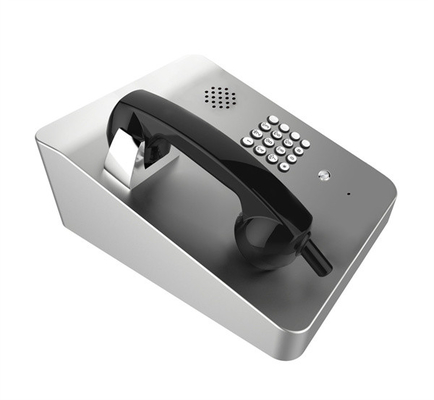

Vandal Resistant Hotline Telephone, Rugged Auto-dial Phones for Parking-lots
This rugged auto-dial phone is designed to meet the needs of client who experience loss through vandalism. Ideal for parking lots, prisons, jails, railway/metro platforms, hospitals, police stations, ATM machines, stadiums, outside building etc.
Housed in cold roll steel box and manufactured to a high standard, these telephones offer increased resistance to vandalism, and ensure that the primary function of communications is maintained at all times.
Specification:
Vandal Resistant Hotline Telephone, Rugged Auto-dial Phones for Parking-lots
| Analogue Version | ||
| Power Supply | From the analogue telephone network | |
| Supply Voltage | 24 VDC to 65 VDC | |
| Supply Current | 20 mA DC to 100 mA DC | |
| Ringer Volume | - 80dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
|
| Dialing Method | DTMF mode in accordance with ITU-T recommendation Q.23. | |
| SIP Version | ||
| Power Supply | PoE or 12V DC | |
| Power Consumption | -Idle:1.5W -Active:1.8W |
|
| SIP Protocol | SIP 2.0 (RFC3261) | |
| Support Codec | G.711 A/U, G.722 8000/16000, G.723, G.729 | |
| Communication Type | Full duplex | |
| Ringer volume | - 90~95dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
|
| 3G Version | ||
| Power Supply | 12V DC | |
| Power Consumption | -Idle:0.3W -Active: 1.5W |
|
| Communication Type | Full duplex | |
| Ringer volume | 90~95dB(A) at a distance of 1 m | |
| Program Method | Remote programming by SMS | |
| Frequency |
A version: - Dual-Band WCDMA/HSDPA 850/1900MHz E version: - Dual-Band UMTS/HSDPA 900/2100MHz J version: - Dual-Band UMTS/HSDPA 850(800)/2100MHz |
|
| Ambient conditions | ||
| Protection type | IP 66 as per EN60529 | |
| Operating temperature | -25°C to +70°C | |
| Storage temperature | -35°C to +85°C | |
MAIN FEATURES of Vandal Resistant Hotline Telephone, Rugged Auto-dial Phones for Parking-lots
- Standard Analogue or SIP phone
- Robust housing, constructed of cold rolled steel with powder coated
- Weather proof protection IP65
- Vandal resistant handset and armored cord
- Programmable for auto-dial
- Can be programmed remotely by tone phone or locally via keypad
- Non-volatile memory
- Wall mounting, simple installation
- Phone line powered (Analog)
- External Power supply or PoE (SIP phone)
- RJ45 connector for SIP phone
- Inductive coupler fitted as standard for hard of hearing
- CE, FCC, ISO9001, RoHS compliant
Applications of Vandal Resistant Hotline Telephone, Rugged Auto-dial Phones for Parking-lots
Ideal for Railway applications, Marine applications, Tunnels. Underground Mining, Firefighter, Industrial, Prisons, Jail, Parking lots, Hospitals, Guard Stations, Police stations, Bank halls, ATM machines, Stadiums, inside and outside building etc.
|
|
