| Brand Name: | Yuantong |
| Model Number: | YT-DJ10 lcd |
| MOQ: | 2PCS |
| Price: | EXW USD 89/UNIT |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000PCS/ month |

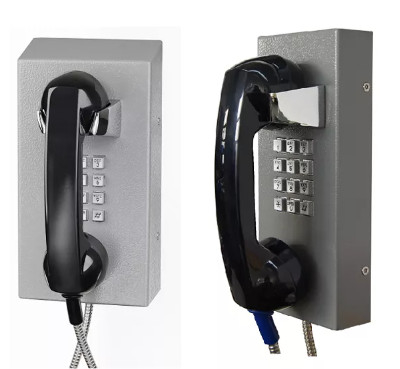

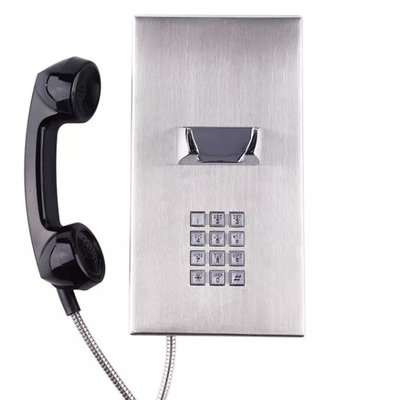

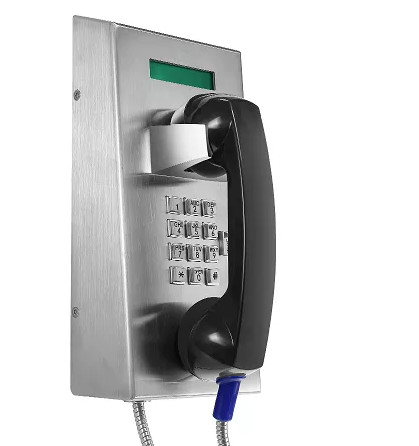

Emergency Jail Telephone Wall-Mounted 304 Stainless Steel Public phone
Characteristics:
1. Autodial when phone is picked up.
2. The number to dial-up can be optionally set or changed by requirement
3. Tally with the full function of the common telephone;
4. Wearable, high reliability, waterproof, moisture proof.
5. Be applicable for attended and unattended condition
Application Examples:
1. It is applicable for speedway system to dial-up help call for emergency;
2. It is applicable for railway or metro system to dialup the section telephone;
3. It is applicable for customers to dialup complaining or service telephone of ATM machines or other service stations;
Functions:
It is applicable for customers to dialup the hotline phone
2. It can be automatically dialup. The phone of the customer service center will be put through automatically for you in five seconds after you pick up handset without pressing any key;
Press"8"key,Guoxin Security Commission Center, the number is set as
Press"9"key, Watch Room, the number is set as
Press"0"key, Customer service center, the number is set as Note: We can devise and make products according to customer's demand besides the products listed in here.
Main Product features
1. Cold rolled steel bodt,solid and temperature bearable.
2. High durability,oil,acid,alkali resistance,conform to the standards of GJB-773 and UL1332 requirements.
3. Highly integrated mainboard,using the most advanced industry-specific microcontroller made in ATMEL company.
4. The box with earthing device is completely isolated with internal electric ciruit,and has certain electromagnetic shielding effect.
5. Conversation with clear loud voice,no feedback screaming.
6. Support hotline of exchange system.
7. Support the function of exterior line automatic lift.
8. Support conversation time limited.
9. Strong,thick and beautiful body with embed wall design.
PACKING
Unit size:280*150*130mm Unit: N.W:2.37KG
1pcs packing box size: 320*190*190mm Unit N.W:2.37KG Unit G.W:2.9KG
6pcs in 1 outer Carton box: size: 510*370*390mm N.W:14.22KG G.W:18.44KG
| Analogue telephone | ||||||||
| 1. PSTN analogue telephone | 2. DTMF dialing | |||||||
| 3. MTBF:100000hours | 4. MTTR: 2 hours | |||||||
| 5. Connection: RJ11 screw terminal pair cable | 6. Sound level of ringing:over 70dB(A). | |||||||
| 7. Call transmission index:(5KM)SLR<12,RLR<-1,stmr>10, output impedance is 600 Ohm.maximum distance: 7KM | ||||||||
| 8. Applicable for various types of SPC exchange PABX and dispatching exchange system with feeding voltage of 33-60V. | ||||||||
| 9. Connection: RJ11 screw terminal pair cable (or RJ11 Socket of plug upon request),with stainless steel cable protected | ||||||||
| 10. Super strong function is available for dialing 12 groups of numbers stored in the memory,(maximum length of each number is 16 digits) | ||||||||
| 11. Standard frequency:low frequency group:697. 770. 852. 941Hz,high frequency group:1209. 1336. 1477Hz, frequency deviation:-1.5%~ +1.5% | ||||||||
| 12. Ambient temperature:-30 ~ +60 degree. Relative humidity:10%~95% Atmospheric pressure: 86~106Kpa Circumstance noise:less than 60dB(A) | ||||||||
| 13. Telephone line powered | ||||||||
| VOIP telephone | ||||||||
| 1. VoIP SIP2.0 telephone | 2. DTMF dialing | |||||||
| 3. MTBF100000hours | 4. MTTR: 2 hours | |||||||
| 5. Auxiliary Contacts:1 Aux Output, dry contact | 6. Rated load:0.3 A at 125 VAC; 1 A at 30 VDC | |||||||
| 7. Contact Ratings. Load: Resistive load | 8. Echo cancellation code:G.167/G.168 | |||||||
| 9. Rated carry current:1A | 10. Max.switching current:1A | |||||||
| 11. Max.switching voltage:125 VAC,60VDC | 12. Audio Codes:G.711, G.722, G.729 | |||||||
| 13. IP Protocols: IPv4, TCP, UDP, TFTP, RTP, RTCP, DHCP, SIP | ||||||||
| 14. Free dial (maximum length of each number is 16 digits) | ||||||||
| 15. Communication: Full duplex 2-way hands-free communication | ||||||||
| 16. Call Control Signaling:VOIP SIP Info(DTMF), RFC 2833(DTMF) | ||||||||
| 17. Network:10/100 BaseTX Ethernet, RJ45 connectors, Cat5e or better | ||||||||
| 18. Power:Power over Ethernet, IEEE802.3af, Class 0 Local power, 12VDc,Idle 2W, Max 10W | ||||||||
| 19. Programming:Non-volatile flash memory programming and configuration through Web GUI | ||||||||
| 20. Management and Operation:DHCP and static IP, remote automatic software upgrade, centralized monitoring, status LED | ||||||||
|
|
| Brand Name: | Yuantong |
| Model Number: | YT-DJ10 lcd |
| MOQ: | 2PCS |
| Price: | EXW USD 89/UNIT |
| Packaging Details: | Standard carton packing |
| Payment Terms: | T/T, Western Union, MoneyGram |
Emergency Jail Telephone Wall-Mounted 304 Stainless Steel Public phone
Characteristics:
1. Autodial when phone is picked up.
2. The number to dial-up can be optionally set or changed by requirement
3. Tally with the full function of the common telephone;
4. Wearable, high reliability, waterproof, moisture proof.
5. Be applicable for attended and unattended condition
Application Examples:
1. It is applicable for speedway system to dial-up help call for emergency;
2. It is applicable for railway or metro system to dialup the section telephone;
3. It is applicable for customers to dialup complaining or service telephone of ATM machines or other service stations;
Functions:
It is applicable for customers to dialup the hotline phone
2. It can be automatically dialup. The phone of the customer service center will be put through automatically for you in five seconds after you pick up handset without pressing any key;
Press"8"key,Guoxin Security Commission Center, the number is set as
Press"9"key, Watch Room, the number is set as
Press"0"key, Customer service center, the number is set as Note: We can devise and make products according to customer's demand besides the products listed in here.
Main Product features
1. Cold rolled steel bodt,solid and temperature bearable.
2. High durability,oil,acid,alkali resistance,conform to the standards of GJB-773 and UL1332 requirements.
3. Highly integrated mainboard,using the most advanced industry-specific microcontroller made in ATMEL company.
4. The box with earthing device is completely isolated with internal electric ciruit,and has certain electromagnetic shielding effect.
5. Conversation with clear loud voice,no feedback screaming.
6. Support hotline of exchange system.
7. Support the function of exterior line automatic lift.
8. Support conversation time limited.
9. Strong,thick and beautiful body with embed wall design.
PACKING
Unit size:280*150*130mm Unit: N.W:2.37KG
1pcs packing box size: 320*190*190mm Unit N.W:2.37KG Unit G.W:2.9KG
6pcs in 1 outer Carton box: size: 510*370*390mm N.W:14.22KG G.W:18.44KG
| Analogue telephone | ||||||||
| 1. PSTN analogue telephone | 2. DTMF dialing | |||||||
| 3. MTBF:100000hours | 4. MTTR: 2 hours | |||||||
| 5. Connection: RJ11 screw terminal pair cable | 6. Sound level of ringing:over 70dB(A). | |||||||
| 7. Call transmission index:(5KM)SLR<12,RLR<-1,stmr>10, output impedance is 600 Ohm.maximum distance: 7KM | ||||||||
| 8. Applicable for various types of SPC exchange PABX and dispatching exchange system with feeding voltage of 33-60V. | ||||||||
| 9. Connection: RJ11 screw terminal pair cable (or RJ11 Socket of plug upon request),with stainless steel cable protected | ||||||||
| 10. Super strong function is available for dialing 12 groups of numbers stored in the memory,(maximum length of each number is 16 digits) | ||||||||
| 11. Standard frequency:low frequency group:697. 770. 852. 941Hz,high frequency group:1209. 1336. 1477Hz, frequency deviation:-1.5%~ +1.5% | ||||||||
| 12. Ambient temperature:-30 ~ +60 degree. Relative humidity:10%~95% Atmospheric pressure: 86~106Kpa Circumstance noise:less than 60dB(A) | ||||||||
| 13. Telephone line powered | ||||||||
| VOIP telephone | ||||||||
| 1. VoIP SIP2.0 telephone | 2. DTMF dialing | |||||||
| 3. MTBF100000hours | 4. MTTR: 2 hours | |||||||
| 5. Auxiliary Contacts:1 Aux Output, dry contact | 6. Rated load:0.3 A at 125 VAC; 1 A at 30 VDC | |||||||
| 7. Contact Ratings. Load: Resistive load | 8. Echo cancellation code:G.167/G.168 | |||||||
| 9. Rated carry current:1A | 10. Max.switching current:1A | |||||||
| 11. Max.switching voltage:125 VAC,60VDC | 12. Audio Codes:G.711, G.722, G.729 | |||||||
| 13. IP Protocols: IPv4, TCP, UDP, TFTP, RTP, RTCP, DHCP, SIP | ||||||||
| 14. Free dial (maximum length of each number is 16 digits) | ||||||||
| 15. Communication: Full duplex 2-way hands-free communication | ||||||||
| 16. Call Control Signaling:VOIP SIP Info(DTMF), RFC 2833(DTMF) | ||||||||
| 17. Network:10/100 BaseTX Ethernet, RJ45 connectors, Cat5e or better | ||||||||
| 18. Power:Power over Ethernet, IEEE802.3af, Class 0 Local power, 12VDc,Idle 2W, Max 10W | ||||||||
| 19. Programming:Non-volatile flash memory programming and configuration through Web GUI | ||||||||
| 20. Management and Operation:DHCP and static IP, remote automatic software upgrade, centralized monitoring, status LED | ||||||||
