| Brand Name: | Yuantong |
| Model Number: | YT-DLSG50 |
| MOQ: | 1 |
| Price: | USD300 |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs per month |

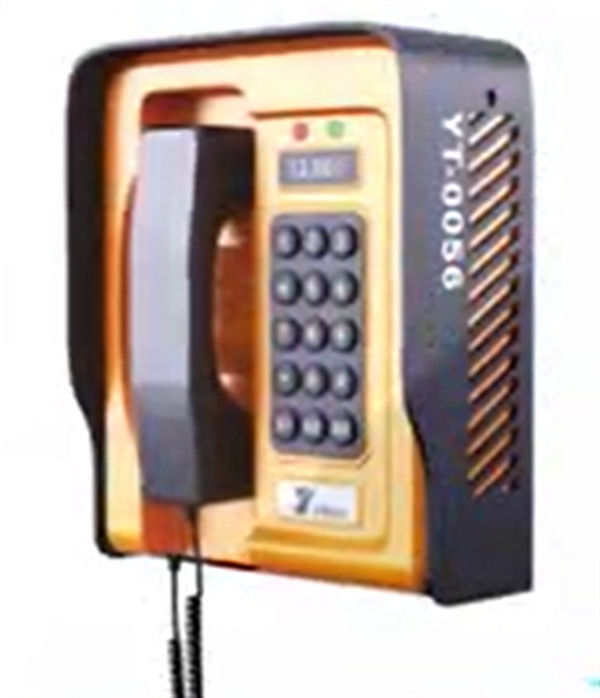

Yuantong Outdoor IP68 Weatherproof Telephone Night Vision Keyboard YT-SG50
Feature Of Industrial Weatherproof Telephone
1. Shell material:Aluminum alloy die-casting,
,Outdoor UV protection,Powder coating treatment
2. Built in 30W power amplifier and 10W speaker .
3. Earpiece material :Shell ABS+PC, stainless steel metal hose line.
4.Stainless steel backlit keyboard
5.Temperature:
Operating temperature: -40°C to +70°C
Storage temperature: -40°C to +75°C
6. Protection class IP68
7. Ring tone level:≥80 dBA within one meter
8. Hook:Magnetic induction hook
9. Mean Time Between Failures,Over 50,000 hoursWaterproof, dustproof, silicone key, IP65.
10. Working well in the extreme temperature environment of 70 degrees to minus 40 degrees.
Specification Of Industrial Weatherproof Telephone
| Analogue Version | |
| Power Supply | From the analogue telephone network |
| Supply Voltage | 24 VDC to 65 VDC |
| Supply Current | 20 mA DC to 100 mA DC |
| Ringer Volume | - 80dB(A) at a distance of 1 m |
| - 110dB(A) at a distance of 1 m (for external horn speaker) | |
| Dialing Method | DTMF mode in accordance with ITU-T recommendation Q.23. |
| SIP Version | |
| Power Supply | PoE or 12V DC |
| Power Consumption | -Idle:1.5W -Active:1.8W |
| SIP Protocol | SIP 2.0 (RFC3261) |
| Support Codec | G.711 A/U, G.722 8000/16000, G.723, G.729 |
| Communication Type | Full duplex |
| Ringer volume | - 90~95dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
| 3G Version | |
| Power Supply | 12V DC |
| Power Consumption |
-Idle:0.3W -Active: 1.5W |
| Communication Type | Full duplex |
| Ringer volume | 90~95dB(A) at a distance of 1 m |
| Program Method | Remote programming by SMS |
| Frequency | A version: - Dual-Band WCDMA/HSDPA 850/1900MHz - Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz E version: - Dual-Band UMTS/HSDPA 900/2100MHz - Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz J version: - Dual-Band UMTS/HSDPA 850(800)/2100MHz - Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz |
| Ambient conditions | |
| Protection type | IP 66 as per EN60529 |
| Operating temperature | -25°C to +70°C |
| Storage temperature | -25°C to +85°C |
Application Of Industrial Weatherproof Telephone
Ideal for public place, park, home, heavy industry, ship, rail station, bank, large building or somewhere need a waterproof telephone etc.
Ideal for Metro, Railway, Highway side, Marine, Mining, Tunnels, Steel Plant,Chemical plant,Power plant indoor: Airport, bank, kiosk, elevator, university, hotel, hospital, plant, oil and gas,Outdoor station,Bridge,Mine, Army,and related industrial application, etc.
Advantage Of Industrial Weatherproof Telephone
1. SMC housing with high mechanical strength, corrosion resistance, and impact resistance.
2. Rotation mounting closure, the weatherproof grade is IP67.
3. Heavy duty handset with hearing aid compatible receiver, noise-canceling microphone.
4. Ambient Temperature: -30 ~ +70 degree celsius.
5. Beacon and loudspeaker option. ( It supports broadcast function without IP PBX).
6. Lightening protection to ITU-T recommendation K.21.
7. Powder-coated in UV stabilized polyester finish.
Advantage Company
1. Specialized in Industrial telephone and spare parts since 2005.
2. Factory of 15000 square meters and 90 staff.
3. Equipped with modernized machines, including hydraulic machines, die casting machines,injection molding machine, punching machine, Frequency response instrument etc.
4. Self-made telephone spare parts, competitive price.
5. OEM and ODM available.
6. ISO9001 quality system certification, CE, FCC, ROHS and IP65 test report.
We can provide you with emergency intercom intercommunication device for different occasions, cast from stainless steel, with analog and ip versions, and can customize development functions according to customer needs. We can supply large-scale projects in large quantities. At present, we have provided intercom to projects such as Australia, Hong Kong, and Thailand subways. Welcome to order!
|
