| Brand Name: | Yuantong |
| Model Number: | YT-DLSG50 |
| MOQ: | 1 |
| Price: | USD300 |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs per month |
1. Shell material:Aluminum alloy die-casting,
,Outdoor UV protection,Powder coating treatment
2. Built in 30W power amplifier and 10W speaker .
3. Earpiece material :Shell ABS+PC, stainless steel metal hose line.
4. Stainless steel backlit keyboard
5.Temperature:
Operating temperature: -40°C to +70°C
Storage temperature: -40°C to +75°C
6. Protection class IP68
7. Ring tone level:≥80 dBA within one meter
8. Hook:Magnetic induction hook
9. Mean Time Between Failures,Over 50,000 hoursWaterproof, dustproof, silicone key, IP65.
10. Working well in the extreme temperature environment of 70 degrees to minus 40 degrees.

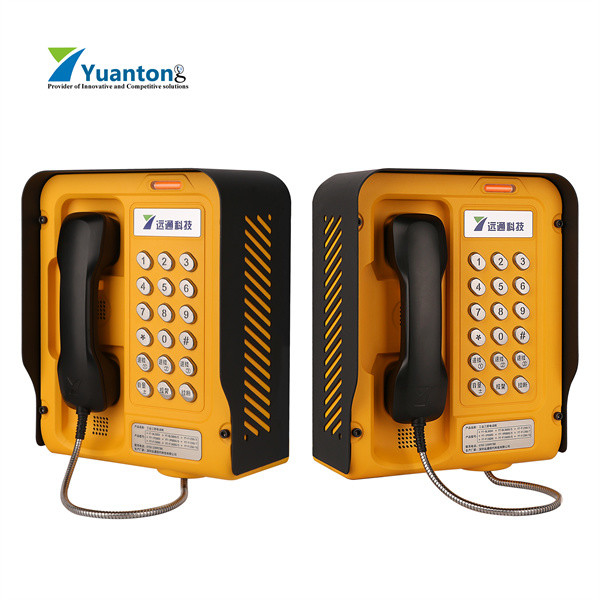

Specification Of Industrial Weatherproof Telephone
| Analogue Version | |
| Power Supply | From the analogue telephone network |
| Supply Voltage | 24 VDC to 65 VDC |
| Supply Current | 20 mA DC to 100 mA DC |
| Ringer Volume | - 80dB(A) at a distance of 1 m |
| - 110dB(A) at a distance of 1 m (for external horn speaker) | |
| Dialing Method | DTMF mode in accordance with ITU-T recommendation Q.23. |
| SIP Version | |
| Power Supply | PoE or 12V DC |
| Power Consumption | -Idle:1.5W -Active:1.8W |
| SIP Protocol | SIP 2.0 (RFC3261) |
| Support Codec | G.711 A/U, G.722 8000/16000, G.723, G.729 |
| Communication Type | Full duplex |
| Ringer volume | - 90~95dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
| 3G Version | |
| Power Supply | 12V DC |
| Power Consumption |
-Idle:0.3W -Active: 1.5W |
| Communication Type | Full duplex |
| Ringer volume | 90~95dB(A) at a distance of 1 m |
| Program Method | Remote programming by SMS |
| Frequency | A version: - Dual-Band WCDMA/HSDPA 850/1900MHz - Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz E version: - Dual-Band UMTS/HSDPA 900/2100MHz - Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz J version: - Dual-Band UMTS/HSDPA 850(800)/2100MHz - Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz |
| Ambient conditions | |
| Protection type | IP 66 as per EN60529 |
| Operating temperature | -25°C to +70°C |
| Storage temperature | -25°C to +85°C |
FQA
Q:Are you a manufacturer or Trading company?
A:We are manufacturer which offer OEM/ODM service.
Q:How does your manufacturer do regarding quanlity control
A:Quanlity is priority. Our manufacturer has gained CE , RoHS, FCC authentication etc.
Q:What is your after-sale service?
A:We offer 100% guarantee of 1 year on our product. And life-time technical service.
|
| Brand Name: | Yuantong |
| Model Number: | YT-DLSG50 |
| MOQ: | 1 |
| Price: | USD300 |
| Packaging Details: | Carton |
| Payment Terms: | T/T |
1. Shell material:Aluminum alloy die-casting,
,Outdoor UV protection,Powder coating treatment
2. Built in 30W power amplifier and 10W speaker .
3. Earpiece material :Shell ABS+PC, stainless steel metal hose line.
4. Stainless steel backlit keyboard
5.Temperature:
Operating temperature: -40°C to +70°C
Storage temperature: -40°C to +75°C
6. Protection class IP68
7. Ring tone level:≥80 dBA within one meter
8. Hook:Magnetic induction hook
9. Mean Time Between Failures,Over 50,000 hoursWaterproof, dustproof, silicone key, IP65.
10. Working well in the extreme temperature environment of 70 degrees to minus 40 degrees.
Specification Of Industrial Weatherproof Telephone
| Analogue Version | |
| Power Supply | From the analogue telephone network |
| Supply Voltage | 24 VDC to 65 VDC |
| Supply Current | 20 mA DC to 100 mA DC |
| Ringer Volume | - 80dB(A) at a distance of 1 m |
| - 110dB(A) at a distance of 1 m (for external horn speaker) | |
| Dialing Method | DTMF mode in accordance with ITU-T recommendation Q.23. |
| SIP Version | |
| Power Supply | PoE or 12V DC |
| Power Consumption | -Idle:1.5W -Active:1.8W |
| SIP Protocol | SIP 2.0 (RFC3261) |
| Support Codec | G.711 A/U, G.722 8000/16000, G.723, G.729 |
| Communication Type | Full duplex |
| Ringer volume | - 90~95dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
| 3G Version | |
| Power Supply | 12V DC |
| Power Consumption |
-Idle:0.3W -Active: 1.5W |
| Communication Type | Full duplex |
| Ringer volume | 90~95dB(A) at a distance of 1 m |
| Program Method | Remote programming by SMS |
| Frequency | A version: - Dual-Band WCDMA/HSDPA 850/1900MHz - Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz E version: - Dual-Band UMTS/HSDPA 900/2100MHz - Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz J version: - Dual-Band UMTS/HSDPA 850(800)/2100MHz - Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz |
| Ambient conditions | |
| Protection type | IP 66 as per EN60529 |
| Operating temperature | -25°C to +70°C |
| Storage temperature | -25°C to +85°C |
FQA
Q:Are you a manufacturer or Trading company?
A:We are manufacturer which offer OEM/ODM service.
Q:How does your manufacturer do regarding quanlity control
A:Quanlity is priority. Our manufacturer has gained CE , RoHS, FCC authentication etc.
Q:What is your after-sale service?
A:We offer 100% guarantee of 1 year on our product. And life-time technical service.
