| Brand Name: | Yuantong |
| Model Number: | YT-DLSG50 |
| MOQ: | 1 |
| Price: | USD300 |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs per month |

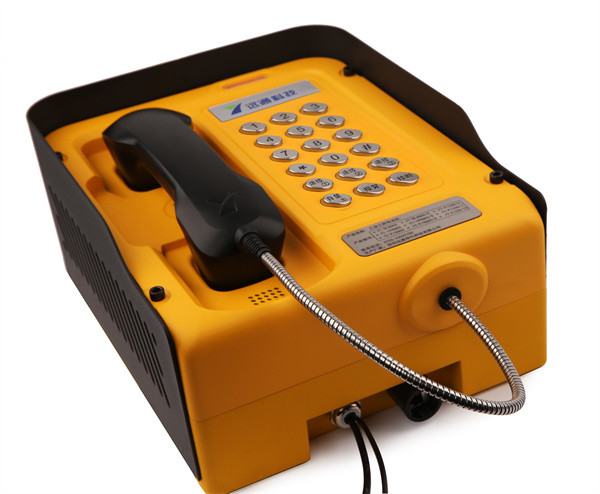

Specification Of Industrial Weatherproof Telephone
| Analogue Version | |
| Power Supply | From the analogue telephone network |
| Supply Voltage | 24 VDC to 65 VDC |
| Supply Current | 20 mA DC to 100 mA DC |
| Ringer Volume | - 80dB(A) at a distance of 1 m |
| - 110dB(A) at a distance of 1 m (for external horn speaker) | |
| Dialing Method | DTMF mode in accordance with ITU-T recommendation Q.23. |
| SIP Version | |
| Power Supply | PoE or 12V DC |
| Power Consumption | -Idle:1.5W -Active:1.8W |
| SIP Protocol | SIP 2.0 (RFC3261) |
| Support Codec | G.711 A/U, G.722 8000/16000, G.723, G.729 |
| Communication Type | Full duplex |
| Ringer volume | - 90~95dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
| 3G Version | |
| Power Supply | 12V DC |
| Power Consumption |
-Idle:0.3W -Active: 1.5W |
| Communication Type | Full duplex |
| Ringer volume | 90~95dB(A) at a distance of 1 m |
| Program Method | Remote programming by SMS |
| Frequency | A version: - Dual-Band WCDMA/HSDPA 850/1900MHz - Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz E version: - Dual-Band UMTS/HSDPA 900/2100MHz - Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz J version: - Dual-Band UMTS/HSDPA 850(800)/2100MHz - Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz |
| Ambient conditions | |
| Protection type | IP 66 as per EN60529 |
| Operating temperature | -25°C to +70°C |
| Storage temperature | -25°C to +85°C |
Application Of Industrial Weatherproof Telephone
Ideal for public place, park, home, heavy industry, ship, rail station, bank, large building or somewhere need a waterproof telephone etc.
Ideal for Metro, Railway, Highway side, Marine, Mining, Tunnels, Steel Plant,Chemical plant,Power plant indoor: Airport, bank, kiosk, elevator, university, hotel, hospital, plant, oil and gas,Outdoor station,Bridge,Mine, Army,and related industrial application, etc.
Advantage Of Industrial Weatherproof Telephone
1. SMC housing with high mechanical strength, corrosion resistance, and impact resistance.
2. Rotation mounting closure, the weatherproof grade is IP67.
3. Heavy duty handset with hearing aid compatible receiver, noise-canceling microphone.
4. Ambient Temperature: -30 ~ +70 degree celsius.
5. Beacon and loudspeaker option. ( It supports broadcast function without IP PBX).
6. Lightening protection to ITU-T recommendation K.21.
7. Powder-coated in UV stabilized polyester finish.
Quality
1. 100% new materials for production, the chips are purchased from international firms such as Maxim, CY,Mitsubishi etc.
2. High quality products with ISO9001, RoHS, FCC, CE Certificates.
3. Multiple detection: Raw materials detection, three rounds of testing for the optical and electrical properties, 24 hours aging test, compatibility testing on switches before delivery.
FQA
Q:Are you a manufacturer or Trading company?
A:We are manufacturer which offer OEM/ODM service.
Q:How does your manufacturer do regarding quanlity control
A:Quanlity is priority. Our manufacturer has gained CE , RoHS, FCC authentication etc.
Q:What is your after-sale service?
A:We offer 100% guarantee of 1 year on our product. And life-time technical service.
|
| Brand Name: | Yuantong |
| Model Number: | YT-DLSG50 |
| MOQ: | 1 |
| Price: | USD300 |
| Packaging Details: | Carton |
| Payment Terms: | T/T |
Specification Of Industrial Weatherproof Telephone
| Analogue Version | |
| Power Supply | From the analogue telephone network |
| Supply Voltage | 24 VDC to 65 VDC |
| Supply Current | 20 mA DC to 100 mA DC |
| Ringer Volume | - 80dB(A) at a distance of 1 m |
| - 110dB(A) at a distance of 1 m (for external horn speaker) | |
| Dialing Method | DTMF mode in accordance with ITU-T recommendation Q.23. |
| SIP Version | |
| Power Supply | PoE or 12V DC |
| Power Consumption | -Idle:1.5W -Active:1.8W |
| SIP Protocol | SIP 2.0 (RFC3261) |
| Support Codec | G.711 A/U, G.722 8000/16000, G.723, G.729 |
| Communication Type | Full duplex |
| Ringer volume | - 90~95dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
| 3G Version | |
| Power Supply | 12V DC |
| Power Consumption |
-Idle:0.3W -Active: 1.5W |
| Communication Type | Full duplex |
| Ringer volume | 90~95dB(A) at a distance of 1 m |
| Program Method | Remote programming by SMS |
| Frequency | A version: - Dual-Band WCDMA/HSDPA 850/1900MHz - Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz E version: - Dual-Band UMTS/HSDPA 900/2100MHz - Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz J version: - Dual-Band UMTS/HSDPA 850(800)/2100MHz - Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz |
| Ambient conditions | |
| Protection type | IP 66 as per EN60529 |
| Operating temperature | -25°C to +70°C |
| Storage temperature | -25°C to +85°C |
Application Of Industrial Weatherproof Telephone
Ideal for public place, park, home, heavy industry, ship, rail station, bank, large building or somewhere need a waterproof telephone etc.
Ideal for Metro, Railway, Highway side, Marine, Mining, Tunnels, Steel Plant,Chemical plant,Power plant indoor: Airport, bank, kiosk, elevator, university, hotel, hospital, plant, oil and gas,Outdoor station,Bridge,Mine, Army,and related industrial application, etc.
Advantage Of Industrial Weatherproof Telephone
1. SMC housing with high mechanical strength, corrosion resistance, and impact resistance.
2. Rotation mounting closure, the weatherproof grade is IP67.
3. Heavy duty handset with hearing aid compatible receiver, noise-canceling microphone.
4. Ambient Temperature: -30 ~ +70 degree celsius.
5. Beacon and loudspeaker option. ( It supports broadcast function without IP PBX).
6. Lightening protection to ITU-T recommendation K.21.
7. Powder-coated in UV stabilized polyester finish.
Quality
1. 100% new materials for production, the chips are purchased from international firms such as Maxim, CY,Mitsubishi etc.
2. High quality products with ISO9001, RoHS, FCC, CE Certificates.
3. Multiple detection: Raw materials detection, three rounds of testing for the optical and electrical properties, 24 hours aging test, compatibility testing on switches before delivery.
FQA
Q:Are you a manufacturer or Trading company?
A:We are manufacturer which offer OEM/ODM service.
Q:How does your manufacturer do regarding quanlity control
A:Quanlity is priority. Our manufacturer has gained CE , RoHS, FCC authentication etc.
Q:What is your after-sale service?
A:We offer 100% guarantee of 1 year on our product. And life-time technical service.
