| Brand Name: | Yuantong |
| Model Number: | YT-XYT/01 |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000 pcs per month |

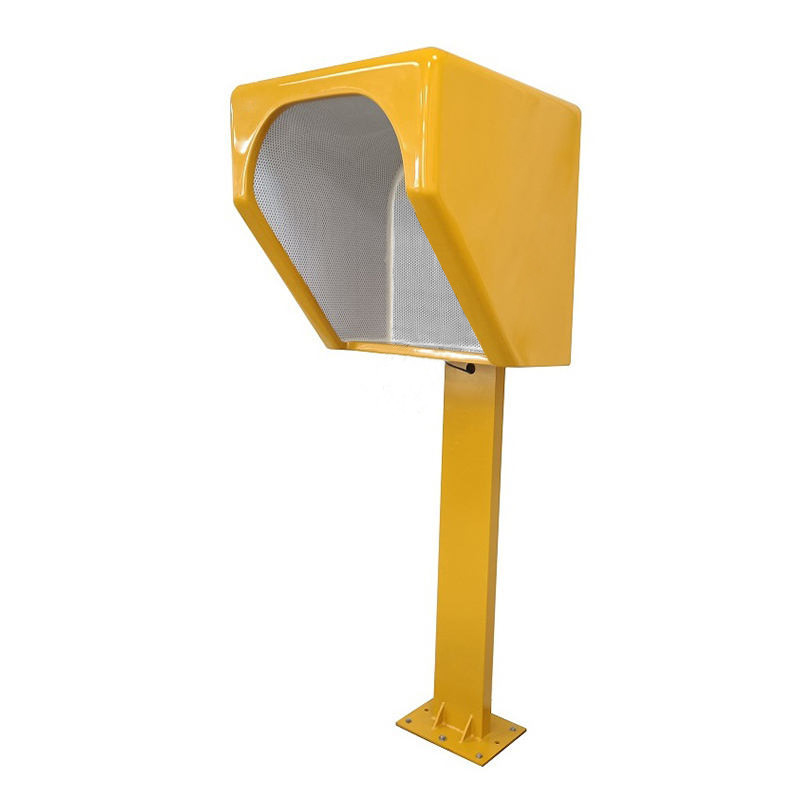

Soundproof Telephone Acoustic Hood Phone Booth Public Call Box In Yellow Color
PRODUCT SPECIFICATIONS
SPECIFICATIONS
Dimensions - 780*680*500 (mm)
Weight - Approx 22 Kg
Stock Colour - Yellow , Other color can be customized.
Cold-rolled Stainless Steel Shelf, powder coated white
Acoustic Insulation - 50mm Tissue faced non hygroscopic Rockwool (RW3) density 60kg/m3
Insulation Liner - White Perforated Polypropylene 3mm thickness
Apparatus plate - Cold-rolled Stainless Steel, 2mm thickness, powder coated white
Mounting Brackets -Cold-rolled Stainless Steel, 6mm thickness
YT-XYT-01 is designed for noisy internal or external installations, providing a weatherproof and quieter telephone area.
Two vandal-proof windows allow a natural light source. And the telephone booth with fancy looking and inside lamp will provide a quiet and safety communication environment day and night.
Manufactured in robust galvanised metal. Internally the three sides of the booth are pre-lined with 50mm non-combustible, non-hygroscopic acoustic insulation. This is held in place by galvanised perforated panels. An acoustic slab is place inside the roof cavity for further insulation. And telephone will be fitted to the inner back panel of the booth.
Telephone Acoustic Hood is made of corrosion-resistant glass-reinforced thermoset plastic (GRP), it has a durable, lightweight, chemical-resistant body that requires no routine maintenance after installation.
Designed for use on outdoor streets, scenic spots, reservoirs, oil, nuclear power plants and other noisy and hazardous areas. It has good sound quality, which can effectively guarantee the communication quality.
Main Features
1. Durable, lightweight, chemical-resistant body
2. Excellent low temperature impact performance
3. High-performance polyurethane sound insulation lining, anti-mildew and anti-corrosion
4. Completely maintenance-free, corrosion-resistant, free from chemical attack
5. Can be used indoors, outdoors and at sea
6. Standard color is yellow, optional color is available upon request
Technical Parameters
| Item | Telephone Acoustic Hood |
| Type | Industrial telephone |
| Material | Fiberglass Reinforced Polyester (GRP) |
| Colors | Yellow, Can be Customized |
| Installation | Wall/ Pillar Mounting |
| Acoustic insulation | Noise Attenuation up to 24 dB |
| Window | vandal-proof tempered glass |
| Usage | Heavy Industries, Refi neries, Airport, Oil&Gas plants |
Applicatiion
Heavy Industries, Refi neries, Airport, Oil&Gas plants, Factories, Chemical plants, Bulk loading stations, Mines, Drilling rigs, Steel mills, Off shore platforms, Any high noise industrial location and more.
Package
| Unit Size: | 780 *680 *500(mm) |
| Carton Dimension: | 800 *700 *520(mm) |
| Packaging materials: | corrugated box, pearl cotton lining |
| Net Weight: | 22KG |
| Gross weight: | 25KG |
FAQ
Q1. How to place an order? What about prices?
A1: Place an inquiry or contact with online service. After receiving your inquiry, we will reply you with prices and information or catalog.
Q2. Can I have my logo printed on the products and packing?
A2: OEM are welcome.
Q3. What is your payment terms?
A3: For sample: PayPal, West Union; for mass order: T/T ,L/C, Paypal, and others
Q4. What would the delivery time of the sample be?
A4: Regularly 3-7 days
Q5. Do you offer guarantee for the products?
A5. Yes, we offer 18months guarantee for our products.
|
| Brand Name: | Yuantong |
| Model Number: | YT-XYT/01 |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Phone size: 780 *680 *500(mm) Packing material: corrugated box, pearl cotton lining Gross weight: 25KG Net weight: about 22KG |
| Payment Terms: | L/C, T/T, Western Union |
Soundproof Telephone Acoustic Hood Phone Booth Public Call Box In Yellow Color
PRODUCT SPECIFICATIONS
SPECIFICATIONS
Dimensions - 780*680*500 (mm)
Weight - Approx 22 Kg
Stock Colour - Yellow , Other color can be customized.
Cold-rolled Stainless Steel Shelf, powder coated white
Acoustic Insulation - 50mm Tissue faced non hygroscopic Rockwool (RW3) density 60kg/m3
Insulation Liner - White Perforated Polypropylene 3mm thickness
Apparatus plate - Cold-rolled Stainless Steel, 2mm thickness, powder coated white
Mounting Brackets -Cold-rolled Stainless Steel, 6mm thickness
YT-XYT-01 is designed for noisy internal or external installations, providing a weatherproof and quieter telephone area.
Two vandal-proof windows allow a natural light source. And the telephone booth with fancy looking and inside lamp will provide a quiet and safety communication environment day and night.
Manufactured in robust galvanised metal. Internally the three sides of the booth are pre-lined with 50mm non-combustible, non-hygroscopic acoustic insulation. This is held in place by galvanised perforated panels. An acoustic slab is place inside the roof cavity for further insulation. And telephone will be fitted to the inner back panel of the booth.
Telephone Acoustic Hood is made of corrosion-resistant glass-reinforced thermoset plastic (GRP), it has a durable, lightweight, chemical-resistant body that requires no routine maintenance after installation.
Designed for use on outdoor streets, scenic spots, reservoirs, oil, nuclear power plants and other noisy and hazardous areas. It has good sound quality, which can effectively guarantee the communication quality.
Main Features
1. Durable, lightweight, chemical-resistant body
2. Excellent low temperature impact performance
3. High-performance polyurethane sound insulation lining, anti-mildew and anti-corrosion
4. Completely maintenance-free, corrosion-resistant, free from chemical attack
5. Can be used indoors, outdoors and at sea
6. Standard color is yellow, optional color is available upon request
Technical Parameters
| Item | Telephone Acoustic Hood |
| Type | Industrial telephone |
| Material | Fiberglass Reinforced Polyester (GRP) |
| Colors | Yellow, Can be Customized |
| Installation | Wall/ Pillar Mounting |
| Acoustic insulation | Noise Attenuation up to 24 dB |
| Window | vandal-proof tempered glass |
| Usage | Heavy Industries, Refi neries, Airport, Oil&Gas plants |
Applicatiion
Heavy Industries, Refi neries, Airport, Oil&Gas plants, Factories, Chemical plants, Bulk loading stations, Mines, Drilling rigs, Steel mills, Off shore platforms, Any high noise industrial location and more.
Package
| Unit Size: | 780 *680 *500(mm) |
| Carton Dimension: | 800 *700 *520(mm) |
| Packaging materials: | corrugated box, pearl cotton lining |
| Net Weight: | 22KG |
| Gross weight: | 25KG |
FAQ
Q1. How to place an order? What about prices?
A1: Place an inquiry or contact with online service. After receiving your inquiry, we will reply you with prices and information or catalog.
Q2. Can I have my logo printed on the products and packing?
A2: OEM are welcome.
Q3. What is your payment terms?
A3: For sample: PayPal, West Union; for mass order: T/T ,L/C, Paypal, and others
Q4. What would the delivery time of the sample be?
A4: Regularly 3-7 days
Q5. Do you offer guarantee for the products?
A5. Yes, we offer 18months guarantee for our products.
