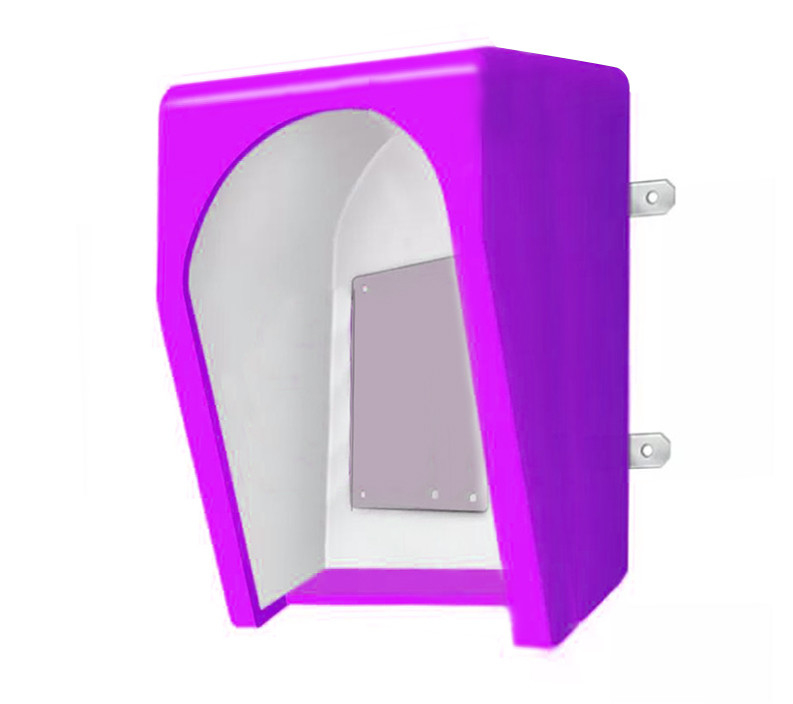

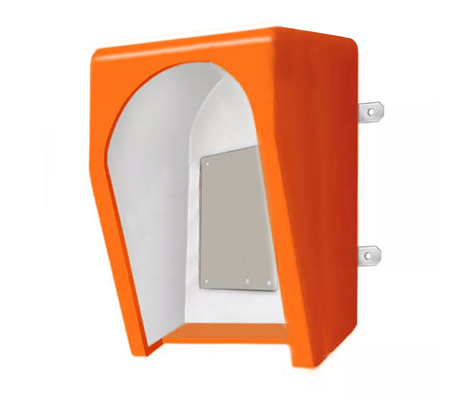

Vandal Resistant Telephone Acoustic Hood Telephone Booths Dustproof Phone Hood
• Dimensions - 780*680*500 (mm)
• Weight - Approx 22 Kg
• Stock Colour - Yellow , Other color can be customized.
• Cold-rolled Stainless Steel Shelf, powder coated white
• Acoustic Insulation - 50mm Tissue faced non hygroscopic Rockwool (RW3) density 60kg/m3
• Insulation Liner - White Perforated Polypropylene 3mm thickness
• Apparatus plate - Cold-rolled Stainless Steel, 2mm thickness, powder coated white
• Mounting Brackets -Cold-rolled Stainless Steel, 6mm thickness
Main Features
1. Acoustic insulation: Noise Attenuation up to 24 dB
2. Polyethylene plastic construction
3. Durable, lightweight, chemical resistant body
4. Excellent low temperatures impact properties
5. High performance polyurethane acoustic insulation liner, resistant to mildew and rot
6. Fire retardant class "0" rating
7. Wall or pillar installation
8. Can be used both indoors, outdoors and offshore
9. Optional colors available upon request
10. Weight: 25 kg
Technical Parameters
| Item | Telephone Acoustic Hood |
| Type | Industrial telephone |
| Material | Fiberglass Reinforced Polyester (GRP) |
| Colors | Yellow, Can be Customized |
| Installation | Wall/ Pillar Mounting |
| Acoustic insulation | Noise Attenuation up to 24 dB |
| Window | vandal-proof tempered glass |
| Usage | Heavy Industries, Refi neries, Airport, Oil&Gas plants |
Applicatiion
Typical applications include the offshore and onshore petrochemical industries, the power and construction industries, for commercial locations where appearances are important or industrial premises to brighten up the working environment.
The acoustic hood has been designed to fit above all types of wall mounted phones. Smaller wall mounted phones, or intercoms can be fixed into the flat area in the back of the hood
Package
| Unit Size: | 780 *680 *500(mm) |
| Carton Dimension: | 800 *700 *520(mm) |
| Packaging materials: | corrugated box, pearl cotton lining |
| Net Weight: | 22KG |
| Gross weight: | 25KG |
FAQ
Q: Do you provide an installation service?
A: No, we do not install products, but they are very straightforward to install, please kindly contact us if unsure.
Q: Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty to our products against delivery.
Q: How about the shipping?
A: 1.Send by DHL / TNT / UPS / FEDEX / EMS,3-5days 2.Send by Air: Arrive at destination Airport fast then pick it up by
yourself 3.Ship by Sea: Low shipping cost and slow delivery (15 - 30 days)
Q: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%. Secondly,
during the guarantee period, we will send new one with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
|
