| Brand Name: | Yuantong |
| Model Number: | YT-XYT/01 |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000 pcs per month |

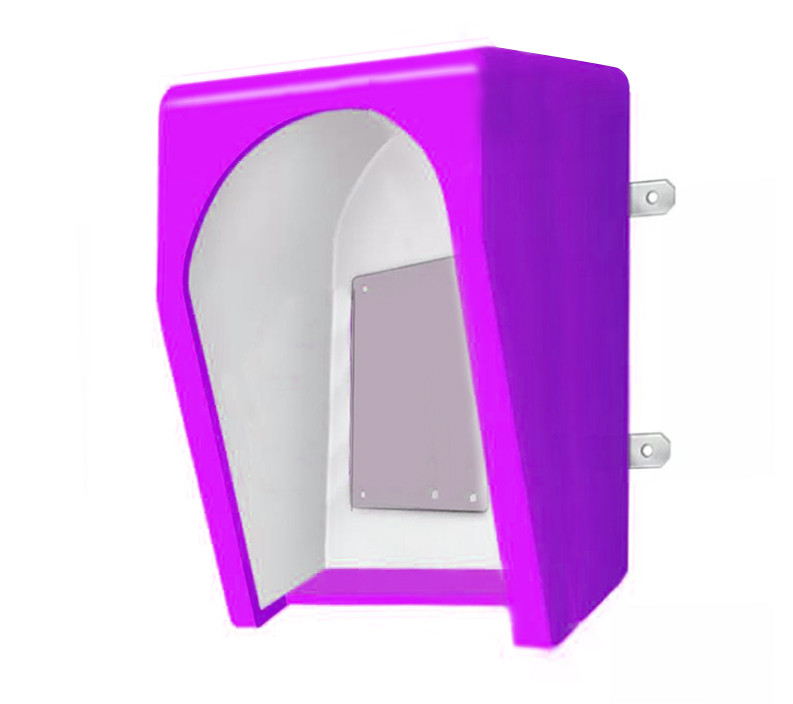

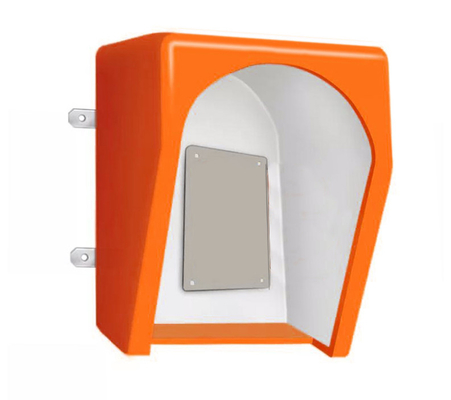

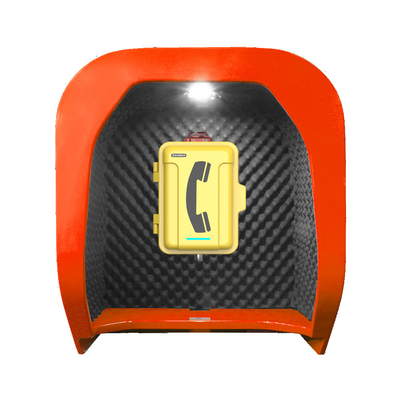

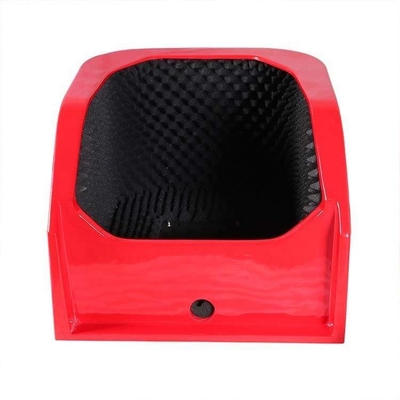

Vandal Proof Industry Telephone Acoustic Hood Acoustic Telephone Booths
• Dimensions - 780*680*500 (mm)
• Weight - Approx 22 Kg
• Stock Colour - Yellow , Other color can be customized.
• Cold-rolled Stainless Steel Shelf, powder coated white
• Acoustic Insulation - 50mm Tissue faced non hygroscopic Rockwool (RW3) density 60kg/m3
• Insulation Liner - White Perforated Polypropylene 3mm thickness
• Apparatus plate - Cold-rolled Stainless Steel, 2mm thickness, powder coated white
• Mounting Brackets -Cold-rolled Stainless Steel, 6mm thickness
Main Features
Noise reduction:
For external or internal use, the RF-25-B is designed to achieve a high level of noise reduction up to 18~23dB. The RF-25-B is manufactured to common fire specifications for resin materials, making it very strong and weatherproof. Inside the hood's outer shell is a perforated polypropylene lining that houses a non-hygroscopic soundproofing material.
Mounted to the inner rear wall is a metal plate; below this plate is a removable GRP shelf for easy cable insertion. 4 layers of different sound insulation cotton and other materials, so that your sound insulation effect is very good, so that you have no noise interference when talking.
Technical Parameters
| Item | Telephone Acoustic Hood |
| Type | Industrial telephone |
| Material | Fiberglass Reinforced Polyester (GRP) |
| Colors | Yellow, Can be Customized |
| Installation | Wall/ Pillar Mounting |
| Acoustic insulation | Noise Attenuation up to 24 dB |
| Window | vandal-proof tempered glass |
| Usage | Heavy Industries, Refi neries, Airport, Oil&Gas plants |
Applicatiion
Heavy Industries, Refi neries, Airport, Oil&Gas plants, Factories, Chemical plants, Bulk loading stations, Mines, Drilling rigs, Steel mills, Off shore platforms, Any high noise industrial location and more.
Package
| Unit Size: | 780 *680 *500(mm) |
| Carton Dimension: | 800 *700 *520(mm) |
| Packaging materials: | corrugated box, pearl cotton lining |
| Net Weight: | 22KG |
| Gross weight: | 25KG |
|
| Brand Name: | Yuantong |
| Model Number: | YT-XYT/01 |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Phone size: 780 *680 *500(mm) Packing material: corrugated box, pearl cotton lining Gross weight: 25KG Net weight: about 22KG |
| Payment Terms: | L/C, T/T, Western Union |
Vandal Proof Industry Telephone Acoustic Hood Acoustic Telephone Booths
• Dimensions - 780*680*500 (mm)
• Weight - Approx 22 Kg
• Stock Colour - Yellow , Other color can be customized.
• Cold-rolled Stainless Steel Shelf, powder coated white
• Acoustic Insulation - 50mm Tissue faced non hygroscopic Rockwool (RW3) density 60kg/m3
• Insulation Liner - White Perforated Polypropylene 3mm thickness
• Apparatus plate - Cold-rolled Stainless Steel, 2mm thickness, powder coated white
• Mounting Brackets -Cold-rolled Stainless Steel, 6mm thickness
Main Features
Noise reduction:
For external or internal use, the RF-25-B is designed to achieve a high level of noise reduction up to 18~23dB. The RF-25-B is manufactured to common fire specifications for resin materials, making it very strong and weatherproof. Inside the hood's outer shell is a perforated polypropylene lining that houses a non-hygroscopic soundproofing material.
Mounted to the inner rear wall is a metal plate; below this plate is a removable GRP shelf for easy cable insertion. 4 layers of different sound insulation cotton and other materials, so that your sound insulation effect is very good, so that you have no noise interference when talking.
Technical Parameters
| Item | Telephone Acoustic Hood |
| Type | Industrial telephone |
| Material | Fiberglass Reinforced Polyester (GRP) |
| Colors | Yellow, Can be Customized |
| Installation | Wall/ Pillar Mounting |
| Acoustic insulation | Noise Attenuation up to 24 dB |
| Window | vandal-proof tempered glass |
| Usage | Heavy Industries, Refi neries, Airport, Oil&Gas plants |
Applicatiion
Heavy Industries, Refi neries, Airport, Oil&Gas plants, Factories, Chemical plants, Bulk loading stations, Mines, Drilling rigs, Steel mills, Off shore platforms, Any high noise industrial location and more.
Package
| Unit Size: | 780 *680 *500(mm) |
| Carton Dimension: | 800 *700 *520(mm) |
| Packaging materials: | corrugated box, pearl cotton lining |
| Net Weight: | 22KG |
| Gross weight: | 25KG |
