| Brand Name: | Yuantong |
| Model Number: | YT-VD105 |
| MOQ: | 1 |
| Price: | Negotiatable |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs per month |

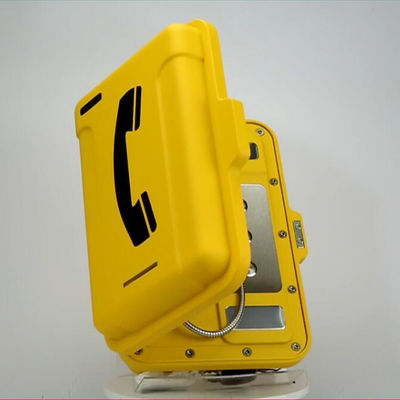

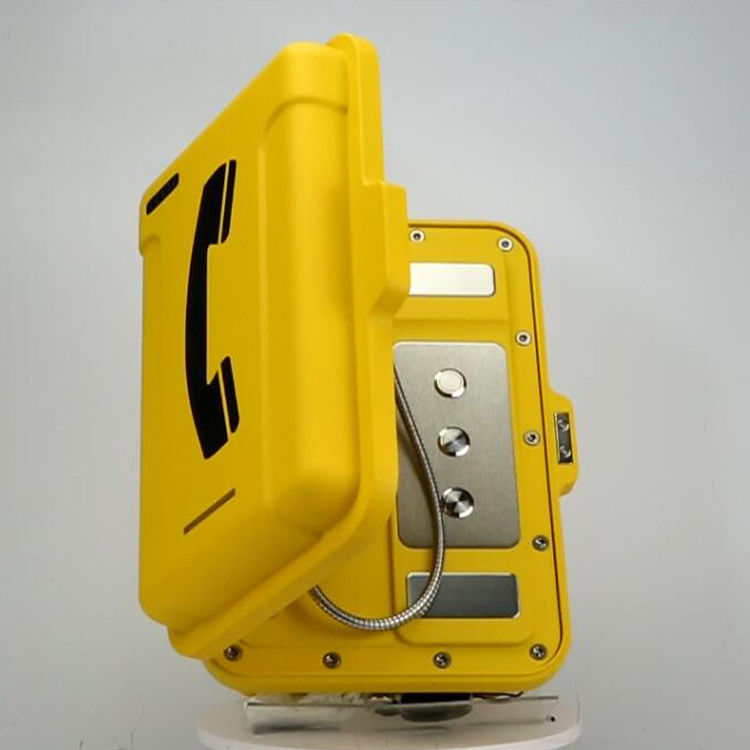

Industrial Outdoor Emergency Telephone Waterproof Protection IP66
Outdoor Telephone Industrial VoIP Phone System Industrial Emergency Telephone
This Industrial VoIP Phone is fully contained within a corrosion resistant cast aluminium weatherproof case, providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.
Equipped with horn, the horn can broadcast remotely for notification, horn works after 1-9 rings (adjustable), shut when handset lifted or call finished. Horn works after 1-9 rings, shut when handset lifted or call finished.
Main Features
- Standard SIP/VoIP phone
- Aluminum alloy die-casting body
- Vandal resistant handset and armored cord
- Weather proof protection to IP68
- Full keypad with memory, 0-9 buttons can be programmed as speed dial button.
- Wall/ Pillar mounting, simple installation
- External power supply or PoE (SIP-VoIP)
- RJ45 port for SIP phone
- Compatible with standard SIP protocol, independently accessible to VOIP phone system.
(Asterisk, Elastix,Grandstream,Cisco,Yeastar etc. mainstream IP-PBX);
- Inductive coupler fitted as standard for hard of hearing
- CE, FCC, ISO9001, RoHS compliant
Technical Parameters
| Signal voltage | 100-230VAC |
| Standby working current | ≤0.2A |
| Frequency Response | 250~3000 Hz |
| Ringing level | ≤80dB(A) |
| Amplified output power | 10～25W |
| Anticorrosion grade | WF1 |
| Ambient temperature | -20～+60℃ |
| Atmospheric pressure | 80～110KPa |
| Relative humidity | ≤95% |
| Lead hole | 3-PG11 |
| Installation method | wall-mounted |
Application
Industrial VoIP telephone Telephone can be used for Metro, Railway, Highway side, Marine, Mining, Tunnels, Steel Plant,Chemical plant,Power plant indoor: Airprot, transtation, bank,koisk, elevator, university, hotel, hospital, plant, oil and gas,Outdoor station,Bridge,Mine, Army,and related industrial application, etc.
Package
| Unit Size: | 373 *282 *137(mm) |
| Carton Dimension: | 400 *352 *150(mm) |
| Packaging materials: | corrugated box, pearl cotton lining |
| Net Weight: | 7.2KG |
| Gross weight: | 8.5KG |
FAQ
1. what can you buy from us?
Emergency Telephone,Explosion Proof Telephone,Industrial Telephone,Public Telephone,Weatherproof Telephone
2. why should you buy from us not from other suppliers?
Dedication and profession have been our pursuing goal during any procedures of our production, not only in developing and quality controlling, but also in marketing and after sales. We serve any single potential customer with special individual solutions
3. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,FCA,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Cash;
|
|
| Brand Name: | Yuantong |
| Model Number: | YT-VD105 |
| MOQ: | 1 |
| Price: | Negotiatable |
| Packaging Details: | Carton |
| Payment Terms: | T/T |
Industrial Outdoor Emergency Telephone Waterproof Protection IP66
Outdoor Telephone Industrial VoIP Phone System Industrial Emergency Telephone
This Industrial VoIP Phone is fully contained within a corrosion resistant cast aluminium weatherproof case, providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.
Equipped with horn, the horn can broadcast remotely for notification, horn works after 1-9 rings (adjustable), shut when handset lifted or call finished. Horn works after 1-9 rings, shut when handset lifted or call finished.
Main Features
- Standard SIP/VoIP phone
- Aluminum alloy die-casting body
- Vandal resistant handset and armored cord
- Weather proof protection to IP68
- Full keypad with memory, 0-9 buttons can be programmed as speed dial button.
- Wall/ Pillar mounting, simple installation
- External power supply or PoE (SIP-VoIP)
- RJ45 port for SIP phone
- Compatible with standard SIP protocol, independently accessible to VOIP phone system.
(Asterisk, Elastix,Grandstream,Cisco,Yeastar etc. mainstream IP-PBX);
- Inductive coupler fitted as standard for hard of hearing
- CE, FCC, ISO9001, RoHS compliant
Technical Parameters
| Signal voltage | 100-230VAC |
| Standby working current | ≤0.2A |
| Frequency Response | 250~3000 Hz |
| Ringing level | ≤80dB(A) |
| Amplified output power | 10～25W |
| Anticorrosion grade | WF1 |
| Ambient temperature | -20～+60℃ |
| Atmospheric pressure | 80～110KPa |
| Relative humidity | ≤95% |
| Lead hole | 3-PG11 |
| Installation method | wall-mounted |
Application
Industrial VoIP telephone Telephone can be used for Metro, Railway, Highway side, Marine, Mining, Tunnels, Steel Plant,Chemical plant,Power plant indoor: Airprot, transtation, bank,koisk, elevator, university, hotel, hospital, plant, oil and gas,Outdoor station,Bridge,Mine, Army,and related industrial application, etc.
Package
| Unit Size: | 373 *282 *137(mm) |
| Carton Dimension: | 400 *352 *150(mm) |
| Packaging materials: | corrugated box, pearl cotton lining |
| Net Weight: | 7.2KG |
| Gross weight: | 8.5KG |
FAQ
1. what can you buy from us?
Emergency Telephone,Explosion Proof Telephone,Industrial Telephone,Public Telephone,Weatherproof Telephone
2. why should you buy from us not from other suppliers?
Dedication and profession have been our pursuing goal during any procedures of our production, not only in developing and quality controlling, but also in marketing and after sales. We serve any single potential customer with special individual solutions
3. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,FCA,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Cash;
