| Brand Name: | Yuantong |
| Model Number: | YT-VD105 |
| MOQ: | 1 |
| Price: | Negotiatable |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs per month |

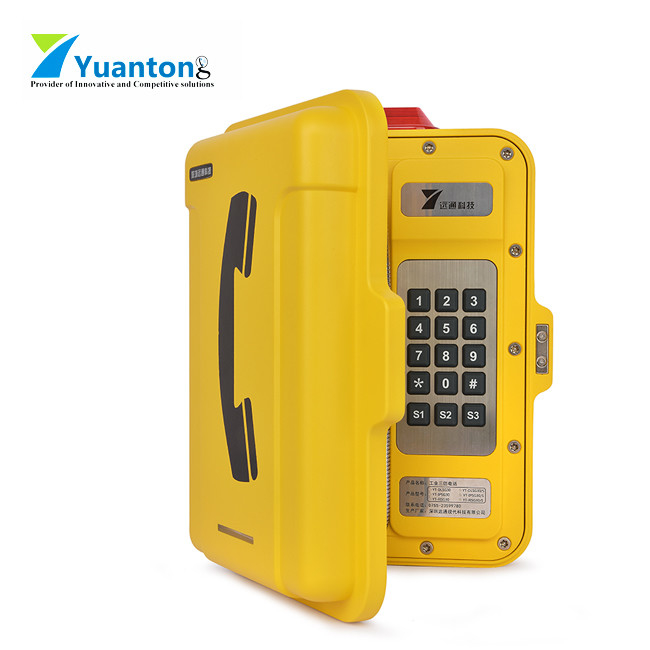

Standard Keypad Outdoor Industrial VOIP Telephone IP68 VOIP Telephone
Our industrial VoIP phone features a corrosion-resistant, vandal-resistant cast aluminum waterproof housing with a magnetically gravitational door that completely prevents the ingress of dust and moisture, extending product life and improving product reliability and stability. It is especially suitable for installation in areas with high dust, humidity, loud noise, and outdoors.
This series of phones is specially designed for use in various extreme environments, and all electronic components are industrial-grade products that are resistant to high and low temperatures. Therefore, our phone can still be used normally in the extreme temperature environment of 70 degrees to minus 40 degrees.
Main Features
1. Standard SIP/VoIP phone
2. Aluminum alloy die-casting body, strong impact resistance
3. Anti-vandal handset and armored wire
4. Waterproof and anti-vandal keyboard
5. Protection class IP68
6. A variety of colors to choose from
7. Wall-mounted, easy to install
The metal shell has a grounding device, which is absolutely insulated from the internal circuit and electrical, and plays the role of electromagnetic shielding
Technical Parameters
| Signal voltage | 100-230VAC |
| Standby working current | ≤0.2A |
| Frequency Response | 250~3000 Hz |
| Ringing level | ≤80dB(A) |
| Amplified output power | 10～25W |
| Anticorrosion grade | WF1 |
| Ambient temperature | -20～+60℃ |
| Atmospheric pressure | 80～110KPa |
| Relative humidity | ≤95% |
| Lead hole | 3-PG11 |
| Installation method | wall-mounted |
Application
This Industrial VoIP telephone is very popular for Tunnels, Mining, Marine, Underground, Metro stations, Railway platform, Highway side, Hotels, Parking lots, Steel Plants, Chemical plants, Power plants and relatedheavy duty industrial application, etc.
Package
| Unit Size: | 373 *282 *137(mm) |
| Carton Dimension: | 400 *352 *150(mm) |
| Packaging materials: | corrugated box, pearl cotton lining |
| Net Weight: | 7.2KG |
| Gross weight: | 8.5KG |
Certification
We have our own product proprietary intellectual property rights and patents, and have been a unique and professional telephone manufacturer company with certifications of IP68 Waterproof Standard, EN Railway 50121, CE and FCC in China. We have formed good cooperation with some famous companies at home and abroad, such as Siemens, FHF, Alcate, Schlumberger, TTIC, ZET, Huawei, etc. Our market network expands to the USA, Canada, France, Russia, Italy, Norway, Switzerland, Finland, Denmark, Germany, Portugal, the Netherlands, Britain, Brazil, Chile, Venezuela, Mexico, Argentina, Malaysia, India, Vietnam, Thailand, Singapore, Pakistan, Nigeria, South Africa, Egypt, Sudan, Tunis, Kenya, Tanzania, Morocco, etc.
|
|
| Brand Name: | Yuantong |
| Model Number: | YT-VD105 |
| MOQ: | 1 |
| Price: | Negotiatable |
| Packaging Details: | Carton |
| Payment Terms: | T/T |
Standard Keypad Outdoor Industrial VOIP Telephone IP68 VOIP Telephone
Our industrial VoIP phone features a corrosion-resistant, vandal-resistant cast aluminum waterproof housing with a magnetically gravitational door that completely prevents the ingress of dust and moisture, extending product life and improving product reliability and stability. It is especially suitable for installation in areas with high dust, humidity, loud noise, and outdoors.
This series of phones is specially designed for use in various extreme environments, and all electronic components are industrial-grade products that are resistant to high and low temperatures. Therefore, our phone can still be used normally in the extreme temperature environment of 70 degrees to minus 40 degrees.
Main Features
1. Standard SIP/VoIP phone
2. Aluminum alloy die-casting body, strong impact resistance
3. Anti-vandal handset and armored wire
4. Waterproof and anti-vandal keyboard
5. Protection class IP68
6. A variety of colors to choose from
7. Wall-mounted, easy to install
The metal shell has a grounding device, which is absolutely insulated from the internal circuit and electrical, and plays the role of electromagnetic shielding
Technical Parameters
| Signal voltage | 100-230VAC |
| Standby working current | ≤0.2A |
| Frequency Response | 250~3000 Hz |
| Ringing level | ≤80dB(A) |
| Amplified output power | 10～25W |
| Anticorrosion grade | WF1 |
| Ambient temperature | -20～+60℃ |
| Atmospheric pressure | 80～110KPa |
| Relative humidity | ≤95% |
| Lead hole | 3-PG11 |
| Installation method | wall-mounted |
Application
This Industrial VoIP telephone is very popular for Tunnels, Mining, Marine, Underground, Metro stations, Railway platform, Highway side, Hotels, Parking lots, Steel Plants, Chemical plants, Power plants and relatedheavy duty industrial application, etc.
Package
| Unit Size: | 373 *282 *137(mm) |
| Carton Dimension: | 400 *352 *150(mm) |
| Packaging materials: | corrugated box, pearl cotton lining |
| Net Weight: | 7.2KG |
| Gross weight: | 8.5KG |
Certification
We have our own product proprietary intellectual property rights and patents, and have been a unique and professional telephone manufacturer company with certifications of IP68 Waterproof Standard, EN Railway 50121, CE and FCC in China. We have formed good cooperation with some famous companies at home and abroad, such as Siemens, FHF, Alcate, Schlumberger, TTIC, ZET, Huawei, etc. Our market network expands to the USA, Canada, France, Russia, Italy, Norway, Switzerland, Finland, Denmark, Germany, Portugal, the Netherlands, Britain, Brazil, Chile, Venezuela, Mexico, Argentina, Malaysia, India, Vietnam, Thailand, Singapore, Pakistan, Nigeria, South Africa, Egypt, Sudan, Tunis, Kenya, Tanzania, Morocco, etc.
