| Brand Name: | Yuantong |
| Model Number: | YT-V80 |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000 pcs per month |

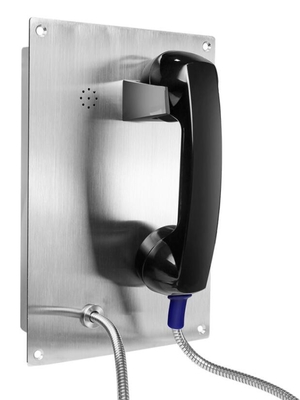

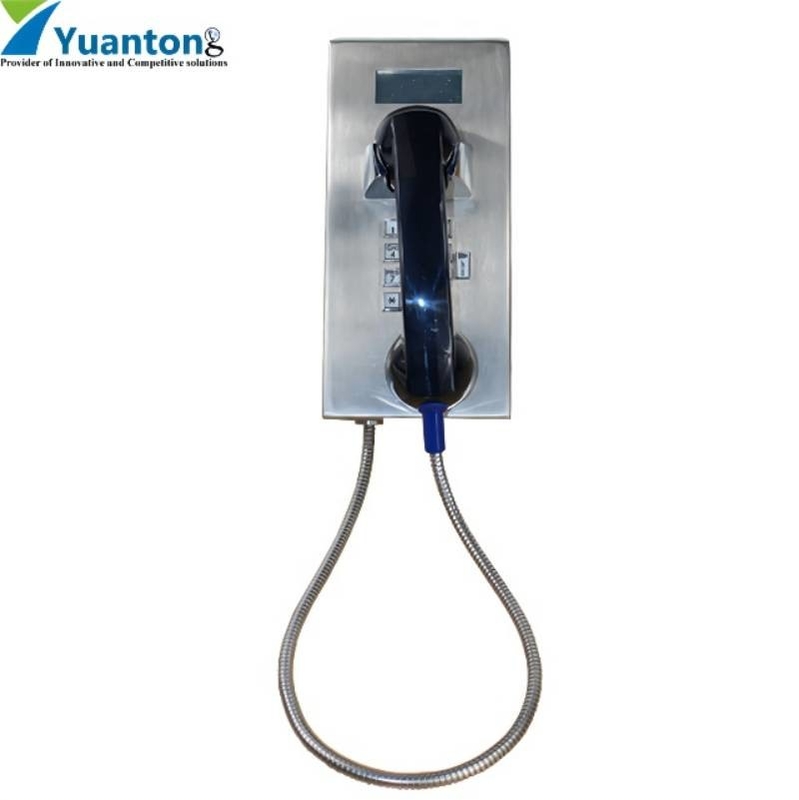

GSM Bank Vandal Resistant Telephone Highway Emergency Telephone
Product Details
Telephone is very stability, strong anti-jamming capability, In line with the national standard GB /T 15279-94.
Shell: stainless steel material with high strength and elasticity, wide high impact strength, wide service temperature.
Main Features of Flush Mounting Vandal Proof Telephone
Standard Analogue phone or VoIP phone
Robust housing, constructed of stainless steel
Vandal resistant armored cord handset
Full Rugged & durable keypad,easy to operate
Flush mounting, simple installation
Programmable for auto-dial
Transmitter and receiver of handset , buzzer,circuit board ,shell , all accessories use multi-layer waterproof and dust-proof structure. It has three-level waterproof, dust proof functions, the whole rating reach to IP66.
Technical Parameters
| Power Supply | Telephone Line Powered |
| Voltage | DC48V |
| Standby working current | ≤1mA |
| Frequency Response | 250~3000 Hz |
| Ringing level | ≤80dB(A) |
| Anticorrosion grade: WF1 | WF1 |
| Ambient temperature | -20～+60℃ |
| Atmospheric pressure | 80～110KPa |
| Relative humidity | ≤95% |
| Riot class | IK10 |
| Installation method |
Embedded |
Features
1. Standard Analogue / SIP / 3G / 4G phone
2. Robust housing, constructed of cold rolled steel
3. Vandal resistant handset weith armored cord
4. With three buttons for emergency call
5. Non-volatile memory
6. On wall mounting, simple installation
7. Inductive coupler fitted as standard for hard of hearing
8. CE, FCC, RoHS, ISO9001 compliant
9. Telephone line powered (Analog version )
10. External Power supply or PoE powered (SIP version)
Application
Widely used in prisons, hotels, subways, airports, toll booths, streets, public squares, courts, railways, parking lots, police stations, hospitals, prisons, guard stations, bank halls, ATM machines, stadiums, etc.
Company Information
Yuantong was established in 2013. It has carried out overseas business in advance, and its products are exported to 120
countries and regions. In 2017, it launched domestic business. Main business: industrial telephones. Products include fiber optic
phones, IP phones, video phones, and SIP Telephones, industrial analog telephones, WIFI telephones, satellite telephones,
explosion-proof telephones, dispatch management systems, etc. The products are mainly used in highways, urban underground
comprehensive pipe corridors, railways, mining, petroleum, metallurgy, chemical, electric power and other fields.
Certification
We have our own product proprietary intellectual property rights and patents, and have been a unique and professional telephone manufacturer company with certifications of IP68 Waterproof Standard, EN Railway 50121, CE and FCC in China. We have formed good cooperation with some famous companies at home and abroad, such as Siemens, FHF, Alcate, Schlumberger, TTIC, ZET, Huawei, etc. Our market network expands to the USA, Canada, France, Russia, Italy, Norway, Switzerland, Finland, Denmark, Germany, Portugal, the Netherlands, Britain, Brazil, Chile, Venezuela, Mexico, Argentina, Malaysia, India, Vietnam, Thailand, Singapore, Pakistan, Nigeria, South Africa, Egypt, Sudan, Tunis, Kenya, Tanzania, Morocco, etc.
Packing Information
Unit Size:280 *180 *120(mm)
Carton Dimension:350 *262 *150(mm)
NW: 3.5KG
GW:4KG
Packaging materials:corrugated box, pearl cotton lining
|
|
