| Brand Name: | Yuantong |
| Model Number: | YT-V80 |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000 pcs per month |

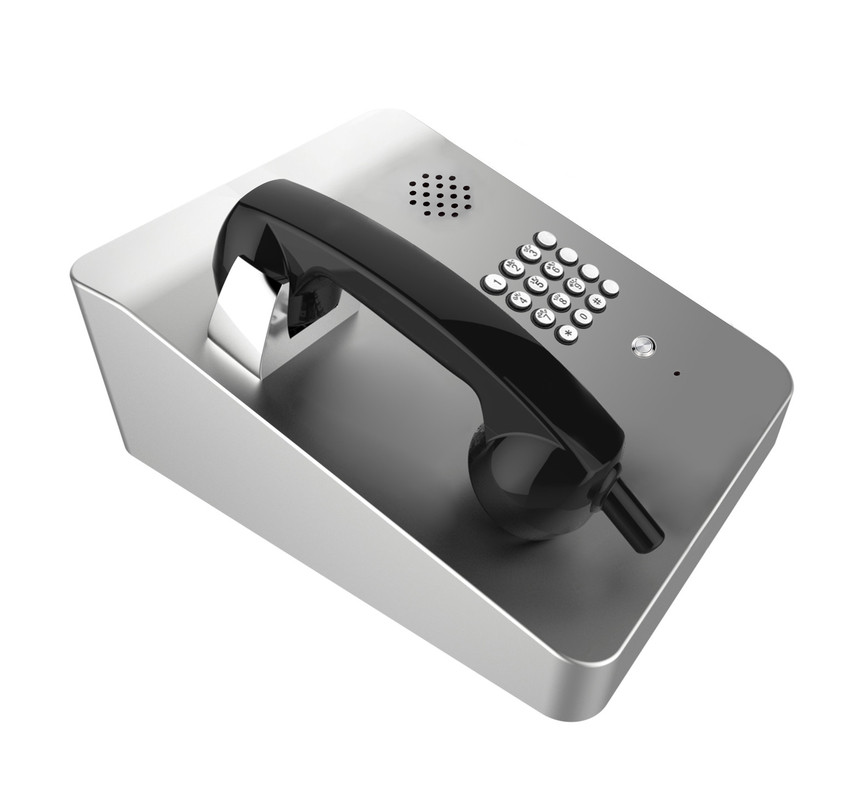

Desk Mounting Vandal Resistant Telephone VoIP Waterproof Public Phone
Product Details
The prison phone is made of 304 stainless steel, which is strong in appearance, corrosion-resistant, impact-resistant, and has anti-vandal function. At the same time, the shell is equipped with a grounding device, which is completely isolated from the internal circuit and has a certain electromagnetic shielding effect. The cable entry is located on the back of the phone to prevent vandalism, while the keypad is weather and vandal resistant.The embedded installation method adopts anti-removal screws, which is stable and reliable after installation, and ensures that the main function of communication is always maintained. It is the best choice for the prison communication call system.
Technical Parameters
| Power Supply | Telephone Line Powered |
| Voltage | DC48V |
| Standby working current | ≤1mA |
| Frequency Response | 250~3000 Hz |
| Ringing level | ≤80dB(A) |
| Anticorrosion grade: WF1 | WF1 |
| Ambient temperature | -20～+60℃ |
| Atmospheric pressure | 80～110KPa |
| Relative humidity | ≤95% |
| Riot class | IK10 |
| Installation method |
Embedded |
Features
1. Standard Analogue / SIP / 3G / 4G phone
2. Robust housing, constructed of cold rolled steel
3. Vandal resistant handset weith armored cord
4. With three buttons for emergency call
5. Non-volatile memory
6. On wall mounting, simple installation
7. Inductive coupler fitted as standard for hard of hearing
8. CE, FCC, RoHS, ISO9001 compliant
9. Telephone line powered (Analog version )
10. External Power supply or PoE powered (SIP version)
Application
Widely used in prisons, hotels, subways, airports, toll booths, streets, public squares, courts, railways, parking lots, police stations, hospitals, prisons, guard stations, bank halls, ATM machines, stadiums, etc.
FAQ
Q. Do you have any MOQ limits?
A: Low MOQ, 1pc is available.
Q. Can I have a sample order?
A: yes, we welcome sample orders to test and check the quality of our product. Mixed samples are acceptable.
Q. How to place an order? What about prices?
A: Place an inquiry or contact with an online service. After receiving your inquiry, we will reply to you with prices and information or a catalog.
Q. Can I have my logo printed on the products and packing?
A: OEM is welcome.
Q. What are your payment terms?
A: For sample: PayPal, West Union; for mass order: T/T, L/C.
Q. What would the delivery time of the sample be?
A: Regularly 3-7 days
Q. Do you offer a guarantee for the products?
A. Yes, we offer 24 months guarantee for our products.
Certification
We have our own product proprietary intellectual property rights and patents, and have been a unique and professional telephone manufacturer company with certifications of IP68 Waterproof Standard, EN Railway 50121, CE and FCC in China. We have formed good cooperation with some famous companies at home and abroad, such as Siemens, FHF, Alcate, Schlumberger, TTIC, ZET, Huawei, etc. Our market network expands to the USA, Canada, France, Russia, Italy, Norway, Switzerland, Finland, Denmark, Germany, Portugal, the Netherlands, Britain, Brazil, Chile, Venezuela, Mexico, Argentina, Malaysia, India, Vietnam, Thailand, Singapore, Pakistan, Nigeria, South Africa, Egypt, Sudan, Tunis, Kenya, Tanzania, Morocco, etc.
Packing Information
Unit Size:280 *180 *120(mm)
Carton Dimension:350 *262 *150(mm)
NW: 3.5KG
GW:4KG
Packaging materials:corrugated box, pearl cotton lining
|
|
| Brand Name: | Yuantong |
| Model Number: | YT-V80 |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Unit Size:280 *180 *120(mm),Carton Dimension:350 *262 *150(mm),Packaging materials:corrugated box, pearl cotton lining |
| Payment Terms: | L/C, T/T, Western Union |
Desk Mounting Vandal Resistant Telephone VoIP Waterproof Public Phone
Product Details
The prison phone is made of 304 stainless steel, which is strong in appearance, corrosion-resistant, impact-resistant, and has anti-vandal function. At the same time, the shell is equipped with a grounding device, which is completely isolated from the internal circuit and has a certain electromagnetic shielding effect. The cable entry is located on the back of the phone to prevent vandalism, while the keypad is weather and vandal resistant.The embedded installation method adopts anti-removal screws, which is stable and reliable after installation, and ensures that the main function of communication is always maintained. It is the best choice for the prison communication call system.
Technical Parameters
| Power Supply | Telephone Line Powered |
| Voltage | DC48V |
| Standby working current | ≤1mA |
| Frequency Response | 250~3000 Hz |
| Ringing level | ≤80dB(A) |
| Anticorrosion grade: WF1 | WF1 |
| Ambient temperature | -20～+60℃ |
| Atmospheric pressure | 80～110KPa |
| Relative humidity | ≤95% |
| Riot class | IK10 |
| Installation method |
Embedded |
Features
1. Standard Analogue / SIP / 3G / 4G phone
2. Robust housing, constructed of cold rolled steel
3. Vandal resistant handset weith armored cord
4. With three buttons for emergency call
5. Non-volatile memory
6. On wall mounting, simple installation
7. Inductive coupler fitted as standard for hard of hearing
8. CE, FCC, RoHS, ISO9001 compliant
9. Telephone line powered (Analog version )
10. External Power supply or PoE powered (SIP version)
Application
Widely used in prisons, hotels, subways, airports, toll booths, streets, public squares, courts, railways, parking lots, police stations, hospitals, prisons, guard stations, bank halls, ATM machines, stadiums, etc.
FAQ
Q. Do you have any MOQ limits?
A: Low MOQ, 1pc is available.
Q. Can I have a sample order?
A: yes, we welcome sample orders to test and check the quality of our product. Mixed samples are acceptable.
Q. How to place an order? What about prices?
A: Place an inquiry or contact with an online service. After receiving your inquiry, we will reply to you with prices and information or a catalog.
Q. Can I have my logo printed on the products and packing?
A: OEM is welcome.
Q. What are your payment terms?
A: For sample: PayPal, West Union; for mass order: T/T, L/C.
Q. What would the delivery time of the sample be?
A: Regularly 3-7 days
Q. Do you offer a guarantee for the products?
A. Yes, we offer 24 months guarantee for our products.
Certification
We have our own product proprietary intellectual property rights and patents, and have been a unique and professional telephone manufacturer company with certifications of IP68 Waterproof Standard, EN Railway 50121, CE and FCC in China. We have formed good cooperation with some famous companies at home and abroad, such as Siemens, FHF, Alcate, Schlumberger, TTIC, ZET, Huawei, etc. Our market network expands to the USA, Canada, France, Russia, Italy, Norway, Switzerland, Finland, Denmark, Germany, Portugal, the Netherlands, Britain, Brazil, Chile, Venezuela, Mexico, Argentina, Malaysia, India, Vietnam, Thailand, Singapore, Pakistan, Nigeria, South Africa, Egypt, Sudan, Tunis, Kenya, Tanzania, Morocco, etc.
Packing Information
Unit Size:280 *180 *120(mm)
Carton Dimension:350 *262 *150(mm)
NW: 3.5KG
GW:4KG
Packaging materials:corrugated box, pearl cotton lining
