| Brand Name: | Yuantong |
| Model Number: | YT-V80 |
| MOQ: | 1 |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs per month |

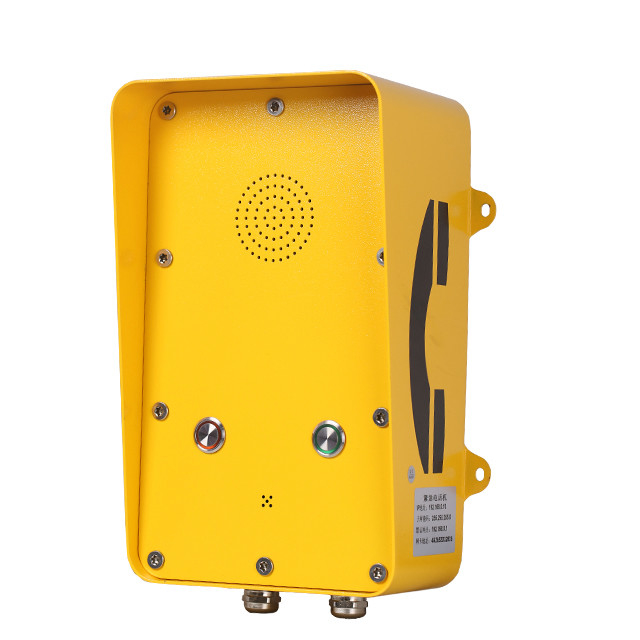

GSM/3G Hotline Vandal Resistant Telephone Outdoor Speed Dial Emergency Telephone
This Vandal Resistant Telephone with armored cord is housed in robust cold rolled steel box with three emergency call buttons and manufactured to a high standard, it is offer increased resistance to vandalism, and ensure that the primary function of communications is maintained at all times, resulting in a highly reliable product with a long MTBF.
Main Features:
Analogue Version
Power Supply From the analogue telephone network
Supply Voltage 24 VDC to 65 VDC
Supply Current 20 mA DC to 100 mA DC
Ringer Volume – 80dB(A) at a distance of 1 m– 110dB(A) at a distance of 1 m (for external speaker)
Dialing Method DTMF mode in accordance with ITU-T recommendation Q.23.
SIP Version
Power Supply PoE or 12V DC
Power Consumption -Idle:1.5W -Active:1.8W
SIP Protocol SIP 2.0 (RFC3261)
Support Codec G.711 A/U, G.722 8000/16000,
Communication Type Full duplex
Ringer Volume – 90~95dB(A) at a distance of 1 m – 110dB(A) at a distance of 1 m (for external speaker)
Ambient conditions
Protection Type IP 66 as per EN60529
Operating Temperature -30°C to +70°C
Storage Temperature -40°C to +75°C
Technical Parameters
| Item | Vandal Resistant Telephone |
| Type | Industrial telephone |
| Handset | ABS Material With Armored Cord |
| Colors | Yellow, Red, Grey |
| Installation | Wall Mounting |
| Version | Analogue/SIP/GSM |
| Material | Cold Rolled Steel Or Stainless Steel |
| Usage | parking lots, prisons, hospitals, police stations, ATM machines,etc. |
Package
| Unit Size: | 280 *180 *120(mm) |
| Carton Dimension: | 350 *262 *150(mm) |
| Packaging materials: | corrugated box, pearl cotton lining |
| Net Weight: | 3.5KG |
| Gross weight: | 4KG |
|
|
| Brand Name: | Yuantong |
| Model Number: | YT-V80 |
| MOQ: | 1 |
| Price: | Negotiable |
| Packaging Details: | Carton |
| Payment Terms: | T/T |
GSM/3G Hotline Vandal Resistant Telephone Outdoor Speed Dial Emergency Telephone
This Vandal Resistant Telephone with armored cord is housed in robust cold rolled steel box with three emergency call buttons and manufactured to a high standard, it is offer increased resistance to vandalism, and ensure that the primary function of communications is maintained at all times, resulting in a highly reliable product with a long MTBF.
Main Features:
Analogue Version
Power Supply From the analogue telephone network
Supply Voltage 24 VDC to 65 VDC
Supply Current 20 mA DC to 100 mA DC
Ringer Volume – 80dB(A) at a distance of 1 m– 110dB(A) at a distance of 1 m (for external speaker)
Dialing Method DTMF mode in accordance with ITU-T recommendation Q.23.
SIP Version
Power Supply PoE or 12V DC
Power Consumption -Idle:1.5W -Active:1.8W
SIP Protocol SIP 2.0 (RFC3261)
Support Codec G.711 A/U, G.722 8000/16000,
Communication Type Full duplex
Ringer Volume – 90~95dB(A) at a distance of 1 m – 110dB(A) at a distance of 1 m (for external speaker)
Ambient conditions
Protection Type IP 66 as per EN60529
Operating Temperature -30°C to +70°C
Storage Temperature -40°C to +75°C
Technical Parameters
| Item | Vandal Resistant Telephone |
| Type | Industrial telephone |
| Handset | ABS Material With Armored Cord |
| Colors | Yellow, Red, Grey |
| Installation | Wall Mounting |
| Version | Analogue/SIP/GSM |
| Material | Cold Rolled Steel Or Stainless Steel |
| Usage | parking lots, prisons, hospitals, police stations, ATM machines,etc. |
Package
| Unit Size: | 280 *180 *120(mm) |
| Carton Dimension: | 350 *262 *150(mm) |
| Packaging materials: | corrugated box, pearl cotton lining |
| Net Weight: | 3.5KG |
| Gross weight: | 4KG |
