| Brand Name: | Yuantong |
| Model Number: | YT-IPSG/EX10 |
| MOQ: | 1 |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs per month |

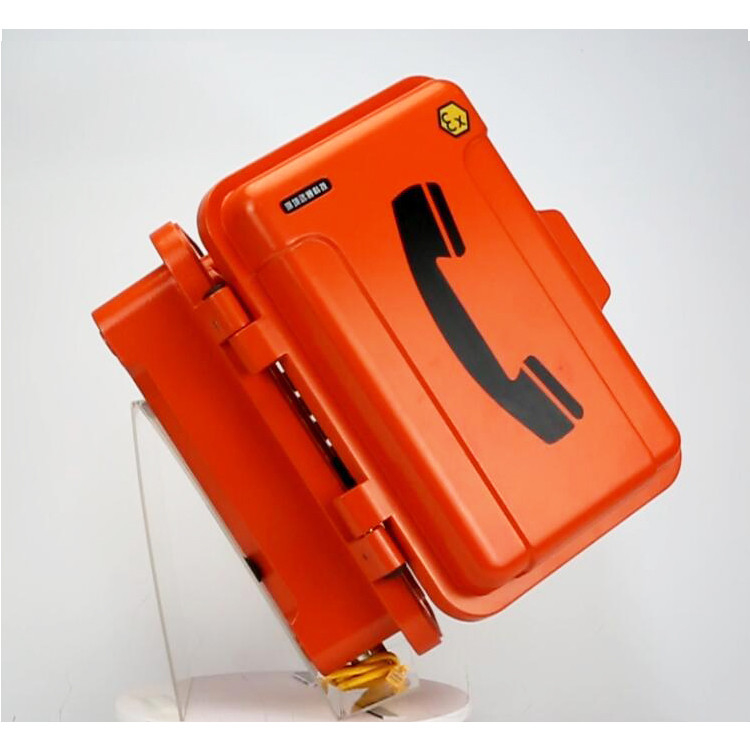

Heavy Duty Rugged Explosion Proof Telephone For Gas Filling Station
Heavy Duty Anti Explosion Rugged Explosion Proof Telephone For Gas Filling Station
Product Description
Shell: Aluminum alloy casting, strong anti-riot, the surface is sprayed with imported reflective paint, with reflective function, easy to find
Door cover: Stainless steel shrapnel and stainless steel shaft. Can automatically spring back, the lock is automatically buckled
Handle: Special ABC/PC plastic, strong anti-knocking, tensile, and riot resistance, and will not break or deform when it withstands knocks, high temperature, low temperature, twisting, etc.
All accessories of the handle transmitter and receiver, keyboard, buzzer, circuit board, and shell adopt multi-layer waterproof and dust-proof structure. Three-level waterproof and dust-proof function.
Hook: The hook uses a magnetic induction switch with a service life of ≥500,000 times
Buttons: silicone buttons, wear-resistant, corrosion-resistant, and anti-aging
Waterproof glue: Imported waterproof glue, high viscosity, high-temperature resistance, high pressure, waterproof life of more than 10 years
Wire: Teflon wire, acid and alkali resistance, high and low-temperature resistance, anti-aging, no fire
The phone has good stability and strong anti-interference ability, in line with the national standard GB/T 15279-94;
The call station adopts a 15-digit keypad with a dual-tone dialing function and the same way of talking as an ordinary telephone.
Phone color is optional, Red is the standard color
Meantime between failures (M.T.B.F): 50000 hours
Technical Parameters
| Material | Aluminum alloy |
| Protection class | IP65 |
| Explosion-proof grade | ExdiiBt6Gb |
| SIP Protocol | SIP 2.0 (RFC3261) |
| Protective front cover | yes |
| Ringing indicator | yes |
| Running indicator | yes |
| Ringing volume | 90~95dB(A) at a distance of 1m |
| Installation method | wall-mounted |
| Working temperature | -40℃~70℃ |
| Dial mode | full keyboard dial / off-hook automatic dial |
| Turn-on time | less than 3S |
| Call method | full-duplex call on the handle |
| Communication interface | RJ45 network port |
| Power supply mode | DC12V, external adapter |
Application
Widely used in ports, terminals, airports, power plants, chemical plants, cement plants, steel plants, oil refineries, mining, natural gas, oil exploration, oil depots, (offshore, shipboard, oil rigs), pulp and paper plants, nuclear power plants , power stations, military, oil tankers and other hazardous environments.
Our Service
1. OEM&ODM service is available.
2. We will do our best to meet customer's requirements.
3. We also offer extended warranties and repair services on all our deliveries.
4. We aim to respond to all product support requests within 24 hours.
Company Information
Yuantong was established in 2013. It has carried out overseas business in advance, and its products are exported to 120
countries and regions. In 2017, it launched domestic business. Main business: industrial telephones. Products include fiber optic
phones, IP phones, video phones, and SIP Telephones, industrial analog telephones, WIFI telephones, satellite telephones,
explosion-proof telephones, dispatch management systems, etc. The products are mainly used in highways, urban underground
comprehensive pipe corridors, railways, mining, petroleum, metallurgy, chemical, electric power and other fields.
|
