Wall SIP Explosion Proof Telephone Industrial Heavy Duty GSM Phone
Explosion Proof Wall Sip Waterproof Telephone Heavy Duty Gsm Phones
Product Description

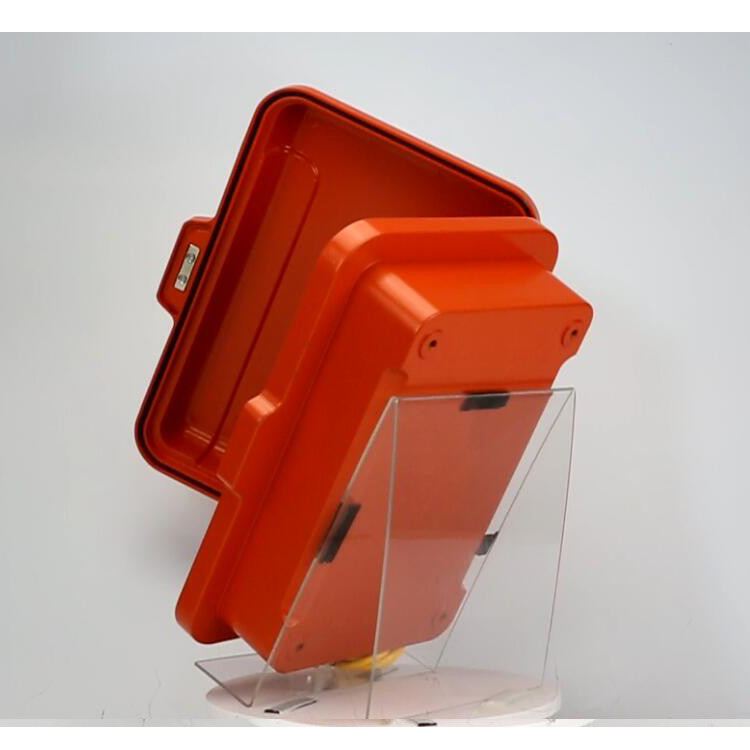

The explosion-proof phone uses a zinc-aluminum alloy die-casting shell with a thickness of 5mm, which is sturdy and durable, and has good sealing performance. The hose with stainless steel is designed with anti-destructive tensile steel rope, and the tensile strength is more than 200KG.
Industrial grade silicone keyboard, imported waterproof glue with strong corrosion resistance, high viscosity, high temperature resistance, explosion-proof grade: ExD ib IIC T6 Gb
With a magnetic gravity door cover, it can completely prevent the entry of dust and moisture, thereby extending the life cycle of the product and improving the reliability and stability of the product. All electronic components are industrial-grade products that are resistant to high and low temperatures, so they can be used normally in extreme temperature environments ranging from 70 degrees to minus 30 degrees.
Technical Parameters
Material |
Aluminum alloy |
Protection class |
IP65 |
Explosion-proof grade |
ExdiiBt6Gb |
SIP Protocol |
SIP 2.0 (RFC3261) |
Protective front cover |
yes |
Ringing indicator |
yes |
Running indicator |
yes |
Ringing volume |
90~95dB(A) at a distance of 1m |
Installation method |
wall-mounted |
Working temperature |
-40℃~70℃ |
Dial mode |
full keyboard dial / off-hook automatic dial |
Turn-on time |
less than 3S |
Call method |
full-duplex call on the handle |
Communication interface |
RJ45 network port |
Power supply mode |
DC12V, external adapter |
Application
We offer industrial grade outdoor Explosion Proof Telephone with a rugged, Explosion Proof telephone enclosure. Housed in aluminum alloy box and manufactured to a high standard, this Waterproof Phone offers increased resistance to vandalism, and ensure that the primary function of communications is always maintained. It is suitable for use in Tunnel, metro, railway, LRT, speedway, marine, ship,offshore, mine, power plant, bridge etc. Extremely easy to install.
Package
Unit Size: |
373 *282 *137(mm) |
Carton Dimension: |
400 *352 *150(mm) |
Packaging materials: |
corrugated box, pearl cotton lining |
Net Weight: |
7.2KG |
Gross weight: |
8.5KG |
FAQ
Q: Can I Have A Sample Order ?
A: Yes, We Welcome Sample Order To Test And Check Quality.Mixed Samples Are Acceptable.
Q: What About The Lead Time?
A: Normally Within 2-5 Working Days. We Have Materials In Stock For Most Of Hot Selling Products.And Mass Production Time Needs 2-4 Weeks For Order Quantity More Than 100 Units.
Q: What's the quality standard of your products?
A: CE, FCC, RoHS, ISO9001:2015 certification approved. All materials are in high grade and new. With the strict quality, every phone be thoroughly tested before leaving the factory.
Q: Can you produce a product in a color of my choosing?
A: Yes, we can manufacture products in different colors, however there may be minimum quantities or surcharges applicable.
Q: Do you provide an installation service?
A: No, we do not install products, but they are very straightforward to install, please kindly contact us if unsure.
Q: Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty to our products against delivery.
Company Information
Yuantong was established in 2013. It has carried out overseas business in advance, and its products are exported to 120
countries and regions. In 2017, it launched domestic business. Main business: industrial telephones. Products include fiber optic
phones, IP phones, video phones, and SIP Telephones, industrial analog telephones, WIFI telephones, satellite telephones,
explosion-proof telephones, dispatch management systems, etc. The products are mainly used in highways, urban underground
comprehensive pipe corridors, railways, mining, petroleum, metallurgy, chemical, electric power and other fields.
![]() |
