| Brand Name: | Yuantong |
| Model Number: | YT-IPSG20 |
| MOQ: | 1 |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs per month |

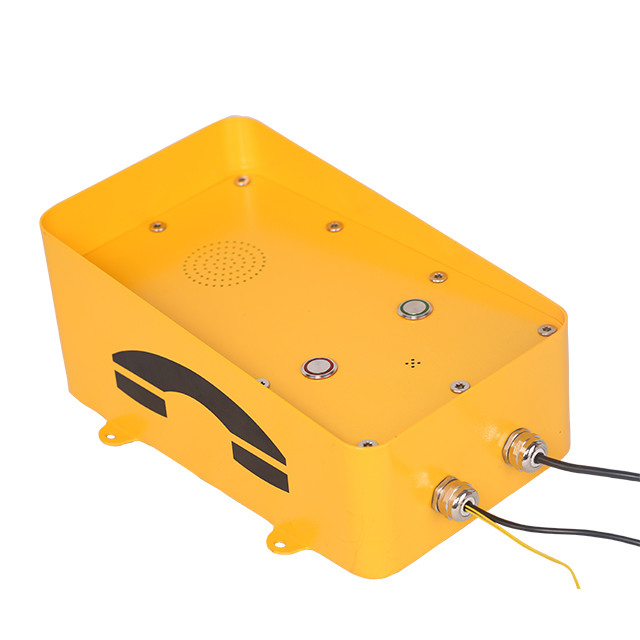

Anti Vandal Industrial Analog Telephone Set Public Emergency Telephone
Analog Version Industrial Telephone Powered by telephone lines, cold-rolled steel sprayed shell/nylon fiber-reinforced shell, strong and durable, good airtightness, anti-violent damage receiver, withstand repeated knocks by adults without breaking, protection grade IP68, industrial-grade silicone buttons, wall-mounted installation, The phone has good stability and strong anti-interference ability. The built-in power amplifier can be connected to a 30W radio speaker.
As a standard analog telephone, the unit provides basic telephone functions and can be connected to any standard two-wire telephone line, including analog PABX lines and PSTN.Equipped with horn, the horn can broadcast remotely for notification, horn works after 1-9 rings (adjustable), shut when handset lifted or call finished. Horn works after 1-9 rings, shut when handset lifted or call finished.
Technical Parameters
| Temperature | -40℃~75℃ |
| Relative humidity | 10%~95% |
| Power Supply | Analog Telephone Network |
| Supply Voltage | 24 VDC to 65 VDC |
| Supply Current | 20 mA DC to 100 mA DC |
| Atmospheric pressure | 86~106Kpa |
| Environmental noise | ≤60dB(A) |
| Ringing tone level | ≥80dB |
| Low frequency | 697-941Hz |
| High frequency group | 1209-1477Hz |
| Frequency offset | Not more than±1.5% |
| Call transmission indicators | SLR≤12,RLR≤-1,STMR≥10 |
| Output Impedance | 600Ω |
| Dial mode | full keyboard dial / off-hook automatic dial |
| Communication distance | 5 kilometers |
| Power supply | telephone line |
Features
1. Standard SIP/VOIP telephone, available for Analogue, GSM/3G phone
2. Robust housing, constructed of stainless steel
3. Vandal resistant metal button and rugged keypad(backlight keypad optional)
4. Hands free operation
5. Can be programmed remotely by tone phone
6. Non-volatile memory
7. Flush mounting, simple installation
8. Weather protection IP68
9. 4 X Tamper proof screws for mounting
10. Fast-fit terminal connection
11. Telephone line powered (Analogue)
12. CE, FCC, RoHS, ISO9001 compliant
13. Built-in amplifier, with external ringer and lamp:15W (30W optional), broadcasting feature
Application
This weatherproof Analog Version Industrial Telephone With Beacon is very popular for Tunnels, Mining, Marine, Underground, Metro stations, Railway platform, Highway side, Hotels, Parking lots, Steel Plants, Chemical plants, Power plants and related heavy duty industrial application, etc.
Package
| Unit Size: | 373 *282 *137(mm) |
| Carton Dimension: | 400 *352 *150(mm) |
| Packaging materials: | corrugated box, pearl cotton lining |
| Net Weight: | 6KG |
| Gross weight: | 7.5KG |
|
|
| Brand Name: | Yuantong |
| Model Number: | YT-IPSG20 |
| MOQ: | 1 |
| Price: | Negotiable |
| Packaging Details: | Carton |
| Payment Terms: | T/T |
Anti Vandal Industrial Analog Telephone Set Public Emergency Telephone
Analog Version Industrial Telephone Powered by telephone lines, cold-rolled steel sprayed shell/nylon fiber-reinforced shell, strong and durable, good airtightness, anti-violent damage receiver, withstand repeated knocks by adults without breaking, protection grade IP68, industrial-grade silicone buttons, wall-mounted installation, The phone has good stability and strong anti-interference ability. The built-in power amplifier can be connected to a 30W radio speaker.
As a standard analog telephone, the unit provides basic telephone functions and can be connected to any standard two-wire telephone line, including analog PABX lines and PSTN.Equipped with horn, the horn can broadcast remotely for notification, horn works after 1-9 rings (adjustable), shut when handset lifted or call finished. Horn works after 1-9 rings, shut when handset lifted or call finished.
Technical Parameters
| Temperature | -40℃~75℃ |
| Relative humidity | 10%~95% |
| Power Supply | Analog Telephone Network |
| Supply Voltage | 24 VDC to 65 VDC |
| Supply Current | 20 mA DC to 100 mA DC |
| Atmospheric pressure | 86~106Kpa |
| Environmental noise | ≤60dB(A) |
| Ringing tone level | ≥80dB |
| Low frequency | 697-941Hz |
| High frequency group | 1209-1477Hz |
| Frequency offset | Not more than±1.5% |
| Call transmission indicators | SLR≤12,RLR≤-1,STMR≥10 |
| Output Impedance | 600Ω |
| Dial mode | full keyboard dial / off-hook automatic dial |
| Communication distance | 5 kilometers |
| Power supply | telephone line |
Features
1. Standard SIP/VOIP telephone, available for Analogue, GSM/3G phone
2. Robust housing, constructed of stainless steel
3. Vandal resistant metal button and rugged keypad(backlight keypad optional)
4. Hands free operation
5. Can be programmed remotely by tone phone
6. Non-volatile memory
7. Flush mounting, simple installation
8. Weather protection IP68
9. 4 X Tamper proof screws for mounting
10. Fast-fit terminal connection
11. Telephone line powered (Analogue)
12. CE, FCC, RoHS, ISO9001 compliant
13. Built-in amplifier, with external ringer and lamp:15W (30W optional), broadcasting feature
Application
This weatherproof Analog Version Industrial Telephone With Beacon is very popular for Tunnels, Mining, Marine, Underground, Metro stations, Railway platform, Highway side, Hotels, Parking lots, Steel Plants, Chemical plants, Power plants and related heavy duty industrial application, etc.
Package
| Unit Size: | 373 *282 *137(mm) |
| Carton Dimension: | 400 *352 *150(mm) |
| Packaging materials: | corrugated box, pearl cotton lining |
| Net Weight: | 6KG |
| Gross weight: | 7.5KG |
