| Brand Name: | Yuantong |
| Model Number: | YT-IPSG20 |
| MOQ: | 1 |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs per month |

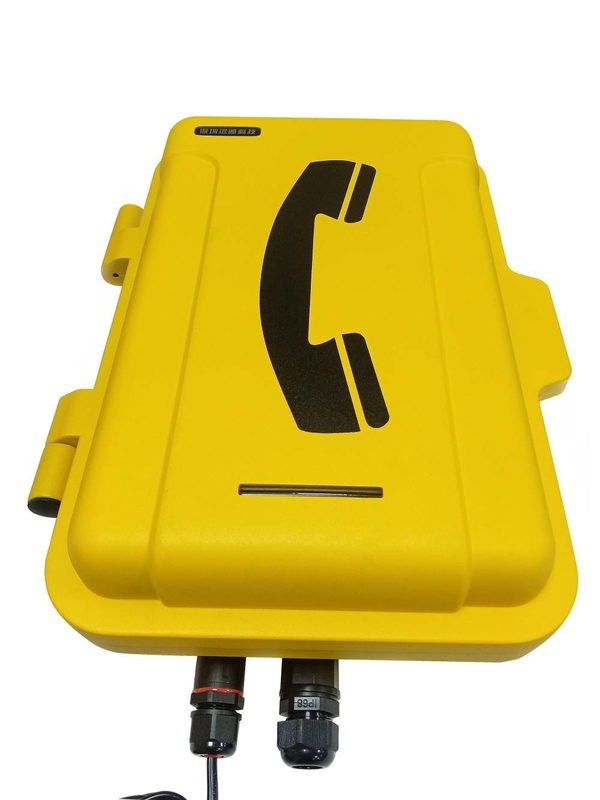

Aluminum Alloy Moisture Resistant Industrial Analog Telephone Weatherproof SIP Telephone
This Analog Version Industrial Telephone is fully contained within a corrosion resistant cast aluminium weatherproof case, which providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.
Equipped with horn, the horn can broadcast remotely for notification, horn works after 1-9 rings (adjustable), shut when handset lifted or call finished. Horn works after 1-9 rings, shut when handset lifted or call finished.
Analog Version Industrial Telephone Powered by telephone lines, cold-rolled steel sprayed shell/nylon fiber-reinforced shell, strong and durable, good airtightness, anti-violent damage receiver, withstand repeated knocks by adults without breaking, protection grade IP68, industrial-grade silicone buttons, wall-mounted installation, The phone has good stability and strong anti-interference ability. The built-in power amplifier can be connected to a 30W radio speaker.
Technical Parameters
| Temperature | -40℃~75℃ |
| Relative humidity | 10%~95% |
| Power Supply | Analog Telephone Network |
| Supply Voltage | 24 VDC to 65 VDC |
| Supply Current | 20 mA DC to 100 mA DC |
| Atmospheric pressure | 86~106Kpa |
| Environmental noise | ≤60dB(A) |
| Ringing tone level | ≥80dB |
| Low frequency | 697-941Hz |
| High frequency group | 1209-1477Hz |
| Frequency offset | Not more than±1.5% |
| Call transmission indicators | SLR≤12,RLR≤-1,STMR≥10 |
| Output Impedance | 600Ω |
| Dial mode | full keyboard dial / off-hook automatic dial |
| Communication distance | 5 kilometers |
| Power supply | telephone line |
Features
1. Standard SIP/VOIP telephone, available for Analogue, GSM/3G phone
2. Robust housing, constructed of stainless steel
3. Vandal resistant metal button and rugged keypad(backlight keypad optional)
4. Hands free operation
5. Can be programmed remotely by tone phone
6. Non-volatile memory
7. Flush mounting, simple installation
8. Weather protection IP68
9. 4 X Tamper proof screws for mounting
10. Fast-fit terminal connection
11. Telephone line powered (Analogue)
12. CE, FCC, RoHS, ISO9001 compliant
Application
This weatherproof Analog Version Industrial Telephone With Beacon is very popular for Tunnels, Mining, Marine, Underground, Metro stations, Railway platform, Highway side, Hotels, Parking lots, Steel Plants, Chemical plants, Power plants and related heavy duty industrial application, etc.
FAQ
Q: Can I Have A Sample Order ?
A: Yes, We Welcome Sample Order To Test And Check Quality.Mixed Samples Are Acceptable.
Q: What About The Lead Time?
A: Normally Within 2-5 Working Days. We Have Materials In Stock For Most Of Hot Selling Products.And Mass Production Time Needs 2-4 Weeks For Order Quantity More Than 100 Units.
Q: What's the quality standard of your products?
A: CE, FCC, RoHS, ISO9001:2015 certification approved. All materials are in high grade and new. With the strict quality, every phone be thoroughly tested before leaving the factory.
Q: Can you produce a product in a color of my choosing?
A: Yes, we can manufacture products in different colors, however there may be minimum quantities or surcharges applicable.
Q: Do you provide an installation service?
A: No, we do not install products, but they are very straightforward to install, please kindly contact us if unsure.
Q: Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty to our products against delivery.
Q: How about the shipping?
A: 1.Send by DHL / TNT / UPS / FEDEX / EMS,3-5days
2. Send by Air: Arrive at destination Airport fast then pick it up by yourself
3. Ship by Sea: Low shipping cost and slow delivery (15 - 30 days)
|
|
