| Brand Name: | Yuantong |
| Model Number: | YT-IPSG20 |
| MOQ: | 1 |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs per month |

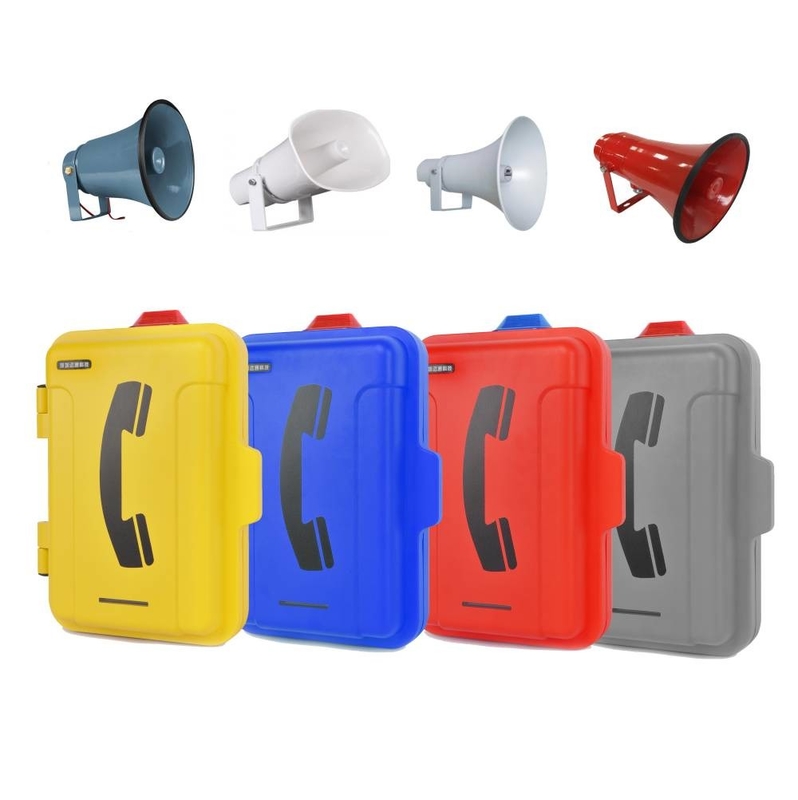

Emergency Industrial Analog Telephone Handset For Prison
This Analog Version Industrial Telephone is fully contained within a corrosion resistant cast aluminium weatherproof case, which providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.
Equipped with horn, the horn can broadcast remotely for notification, horn works after 1-9 rings (adjustable), shut when handset lifted or call finished. Horn works after 1-9 rings, shut when handset lifted or call finished.
Analog Version Industrial Telephone Powered by telephone lines, cold-rolled steel sprayed shell/nylon fiber-reinforced shell, strong and durable, good airtightness, anti-violent damage receiver, withstand repeated knocks by adults without breaking, protection grade IP68, industrial-grade silicone buttons, wall-mounted installation, The phone has good stability and strong anti-interference ability. The built-in power amplifier can be connected to a 30W radio speaker.
Technical Parameters
| Temperature | -40℃~75℃ |
| Relative humidity | 10%~95% |
| Power Supply | Analog Telephone Network |
| Supply Voltage | 24 VDC to 65 VDC |
| Supply Current | 20 mA DC to 100 mA DC |
| Atmospheric pressure | 86~106Kpa |
| Environmental noise | ≤60dB(A) |
| Ringing tone level | ≥80dB |
| Low frequency | 697-941Hz |
| High frequency group | 1209-1477Hz |
| Frequency offset | Not more than±1.5% |
| Call transmission indicators | SLR≤12,RLR≤-1,STMR≥10 |
| Output Impedance | 600Ω |
| Dial mode | full keyboard dial / off-hook automatic dial |
| Communication distance | 5 kilometers |
| Power supply | telephone line |
Features
- Standard Analog phone
- Vandal resistant handset with armored cord
- Weather proof protection to IP68
- Hands free operation
- Single or Dual button auto dial options with remote programming
- The phone will ringing loudly when there is a incoming call.
- With auto-answer feature after 5 ringing, Auto- release the line when the other side cut off the line.
- Built-in amplifier, with external ringer and lamp:15W (30W optional), broadcasting feature
- Wall / Pillar mounting, simple installation
- CE, FCC, RoHS, ISO9001 compliant
- Power supply: Phone line powered ( Analogue)
Application
This weatherproof Analog Version Industrial Telephone With Beacon is very popular for Tunnels, Mining, Marine, Underground, Metro stations, Railway platform, Highway side, Hotels, Parking lots, Steel Plants, Chemical plants, Power plants and related heavy duty industrial application, etc.
Package
| Unit Size: | 373 *282 *137(mm) |
| Carton Dimension: | 400 *352 *150(mm) |
| Packaging materials: | corrugated box, pearl cotton lining |
| Net Weight: | 6KG |
| Gross weight: | 7.5KG |
|
|
| Brand Name: | Yuantong |
| Model Number: | YT-IPSG20 |
| MOQ: | 1 |
| Price: | Negotiable |
| Packaging Details: | Carton |
| Payment Terms: | T/T |
Emergency Industrial Analog Telephone Handset For Prison
This Analog Version Industrial Telephone is fully contained within a corrosion resistant cast aluminium weatherproof case, which providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.
Equipped with horn, the horn can broadcast remotely for notification, horn works after 1-9 rings (adjustable), shut when handset lifted or call finished. Horn works after 1-9 rings, shut when handset lifted or call finished.
Analog Version Industrial Telephone Powered by telephone lines, cold-rolled steel sprayed shell/nylon fiber-reinforced shell, strong and durable, good airtightness, anti-violent damage receiver, withstand repeated knocks by adults without breaking, protection grade IP68, industrial-grade silicone buttons, wall-mounted installation, The phone has good stability and strong anti-interference ability. The built-in power amplifier can be connected to a 30W radio speaker.
Technical Parameters
| Temperature | -40℃~75℃ |
| Relative humidity | 10%~95% |
| Power Supply | Analog Telephone Network |
| Supply Voltage | 24 VDC to 65 VDC |
| Supply Current | 20 mA DC to 100 mA DC |
| Atmospheric pressure | 86~106Kpa |
| Environmental noise | ≤60dB(A) |
| Ringing tone level | ≥80dB |
| Low frequency | 697-941Hz |
| High frequency group | 1209-1477Hz |
| Frequency offset | Not more than±1.5% |
| Call transmission indicators | SLR≤12,RLR≤-1,STMR≥10 |
| Output Impedance | 600Ω |
| Dial mode | full keyboard dial / off-hook automatic dial |
| Communication distance | 5 kilometers |
| Power supply | telephone line |
Features
- Standard Analog phone
- Vandal resistant handset with armored cord
- Weather proof protection to IP68
- Hands free operation
- Single or Dual button auto dial options with remote programming
- The phone will ringing loudly when there is a incoming call.
- With auto-answer feature after 5 ringing, Auto- release the line when the other side cut off the line.
- Built-in amplifier, with external ringer and lamp:15W (30W optional), broadcasting feature
- Wall / Pillar mounting, simple installation
- CE, FCC, RoHS, ISO9001 compliant
- Power supply: Phone line powered ( Analogue)
Application
This weatherproof Analog Version Industrial Telephone With Beacon is very popular for Tunnels, Mining, Marine, Underground, Metro stations, Railway platform, Highway side, Hotels, Parking lots, Steel Plants, Chemical plants, Power plants and related heavy duty industrial application, etc.
Package
| Unit Size: | 373 *282 *137(mm) |
| Carton Dimension: | 400 *352 *150(mm) |
| Packaging materials: | corrugated box, pearl cotton lining |
| Net Weight: | 6KG |
| Gross weight: | 7.5KG |
