| Brand Name: | Yuantong |
| Model Number: | YT-IPSG20 |
| MOQ: | 1 |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs per month |

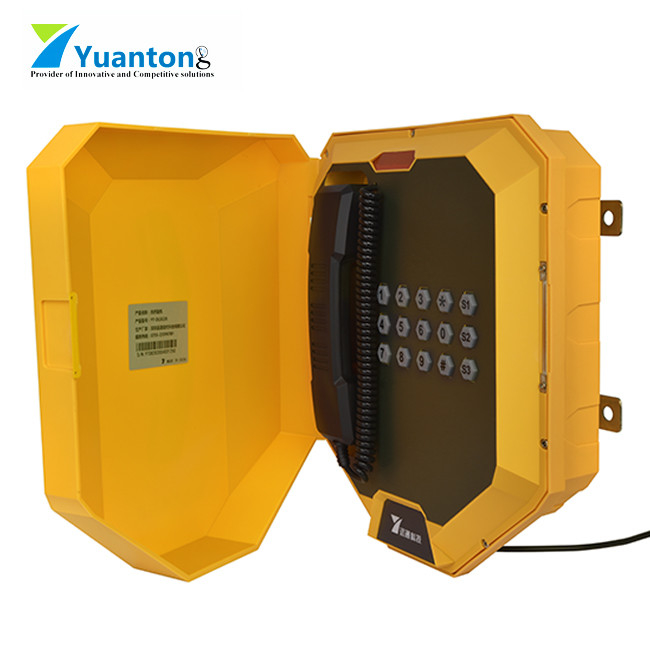

SIP Weather Resistant Phones Emergency Outdoor Industrial Analog Telephones
Product Description
1. Standard SIP/VOIP telephone, available for Analogue, GSM/3G phone
2. Robust housing, constructed of stainless steel
3. Vandal resistant metal button and rugged keypad(backlight keypad optional)
4. Hands free operation
5. Can be programmed remotely by tone phone
6. Non-volatile memory
7. Flush mounting, simple installation
8. Weather protection IP68
9. 4 X Tamper proof screws for mounting
10. Fast-fit terminal connection
11. Telephone line powered (Analogue)
12. CE, FCC, RoHS, ISO9001 compliant
13. Standard Analog phone
14. Vandal resistant handset with armored cord
Technical Parameters
| Temperature | -40℃~75℃ |
| Relative humidity | 10%~95% |
| Power Supply | Analog Telephone Network |
| Supply Voltage | 24 VDC to 65 VDC |
| Supply Current | 20 mA DC to 100 mA DC |
| Atmospheric pressure | 86~106Kpa |
| Environmental noise | ≤60dB(A) |
| Ringing tone level | ≥80dB |
| Low frequency | 697-941Hz |
| High frequency group | 1209-1477Hz |
| Frequency offset | Not more than±1.5% |
| Call transmission indicators | SLR≤12,RLR≤-1,STMR≥10 |
| Output Impedance | 600Ω |
| Dial mode | full keyboard dial / off-hook automatic dial |
| Communication distance | 5 kilometers |
| Power supply | telephone line |
Application
This weatherproof Analog Version Industrial Telephone With Beacon is very popular for Tunnels, Mining, Marine, Underground, Metro stations, Railway platform, Highway side, Hotels, Parking lots, Steel Plants, Chemical plants, Power plants and related heavy duty industrial application, etc.
Package
| Unit Size: | 373 *282 *137(mm) |
| Carton Dimension: | 400 *352 *150(mm) |
| Packaging materials: | corrugated box, pearl cotton lining |
| Net Weight: | 6KG |
| Gross weight: | 7.5KG |
FAQ
Q1. How to place an order? What about prices?
A1: Place an inquiry or contact with online service. After receiving your inquiry, we will reply you with prices and information or catalog.
Q2. Can I have my logo printed on the products and packing?
A2: OEM are welcome.
Q3. What is your payment terms?
A3: For sample: PayPal, West Union; for mass order: T/T ,L/C, Paypal, and others
Q4. What would the delivery time of the sample be?
A4: Regularly 3-7 days
Q5. Do you offer guarantee for the products?
A5. Yes, we offer 18months guarantee for our products.
Certification
We have our own product proprietary intellectual property rights and patents, and have been a unique and professional telephone manufacturer company with certifications of IP68 Waterproof Standard, EN Railway 50121, CE and FCC in China. We have formed good cooperation with some famous companies at home and abroad, such as Siemens, FHF, Alcate, Schlumberger, TTIC, ZET, Huawei, etc. Our market network expands to the USA, Canada, France, Russia, Italy, Norway, Switzerland, Finland, Denmark, Germany, Portugal, the Netherlands, Britain, Brazil, Chile, Venezuela, Mexico, Argentina, Malaysia, India, Vietnam, Thailand, Singapore, Pakistan, Nigeria, South Africa, Egypt, Sudan, Tunis, Kenya, Tanzania, Morocco, etc.
|
|
