| Brand Name: | Yuantong |
| Model Number: | YT-IPSG20 |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 5000 sets per month |

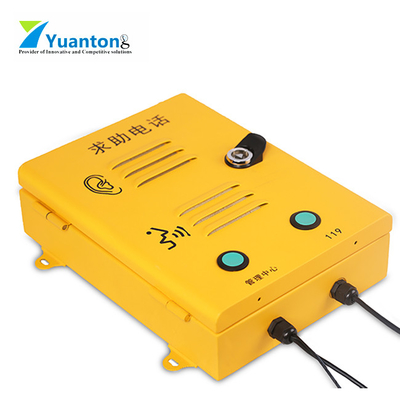

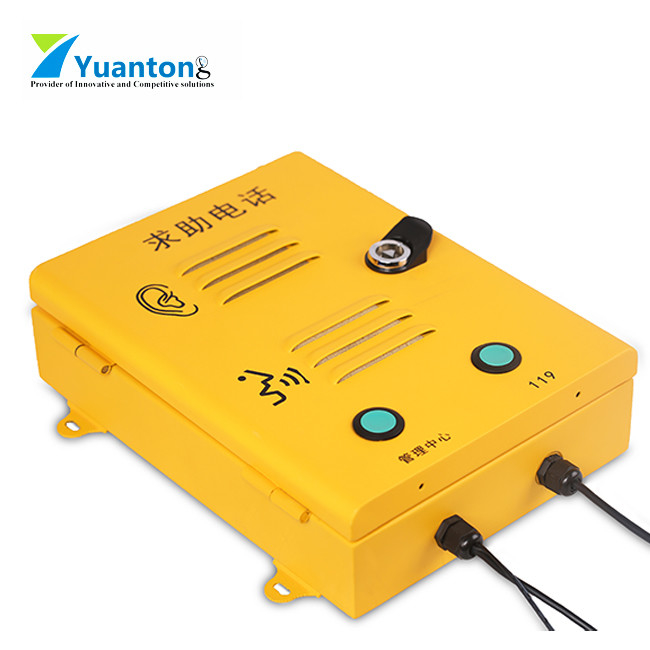

Outdoor Emergency Telephone Waterproof Wall Mounted Industrial Analog Telephone
Product Description
- Standard Analog phone
- Vandal resistant handset with armored cord
- Weather proof protection to IP68
- Hands free operation
- Single or Dual button auto dial options with remote programming
- The phone will ringing loudly when there is a incoming call.
- With auto-answer feature after 5 ringing, Auto- release the line when the other side cut off the line.
- Built-in amplifier, with external ringer and lamp:15W (30W optional), broadcasting feature
- Wall / Pillar mounting, simple installation
- CE, FCC, RoHS, ISO9001 compliant
- Power supply: Phone line powered ( Analogue)
Technical Parameters
| Temperature | -40℃~75℃ |
| Relative humidity | 10%~95% |
| Power Supply | Analog Telephone Network |
| Supply Voltage | 24 VDC to 65 VDC |
| Supply Current | 20 mA DC to 100 mA DC |
| Atmospheric pressure | 86~106Kpa |
| Environmental noise | ≤60dB(A) |
| Ringing tone level | ≥80dB |
| Low frequency | 697-941Hz |
| High frequency group | 1209-1477Hz |
| Frequency offset | Not more than±1.5% |
| Call transmission indicators | SLR≤12,RLR≤-1,STMR≥10 |
| Output Impedance | 600Ω |
| Dial mode | full keyboard dial / off-hook automatic dial |
| Communication distance | 5 kilometers |
| Power supply | telephone line |
Application
This weatherproof Analog Version Industrial Telephone With Beacon is very popular for Tunnels, Mining, Marine, Underground, Metro stations, Railway platform, Highway side, Hotels, Parking lots, Steel Plants, Chemical plants, Power plants and related heavy duty industrial application, etc.
Package
| Unit Size: | 373 *282 *137(mm) |
| Carton Dimension: | 400 *352 *150(mm) |
| Packaging materials: | corrugated box, pearl cotton lining |
| Net Weight: | 6KG |
| Gross weight: | 7.5KG |
FAQ
Q: Do you provide an installation service?
A: No, we do not install products, but they are very straightforward to install, please kindly contact us if unsure.
Q: Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty to our products against delivery.
Q: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%. Secondly,
during the guarantee period, we will send new one with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
|
|
| Brand Name: | Yuantong |
| Model Number: | YT-IPSG20 |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Phone size: 373 *282 *137(mm) Packing material: corrugated box, pearl cotton lining Gross weight: 7.5KG Net weight: about 6KG |
| Payment Terms: | L/C, T/T, Western Union |
Outdoor Emergency Telephone Waterproof Wall Mounted Industrial Analog Telephone
Product Description
- Standard Analog phone
- Vandal resistant handset with armored cord
- Weather proof protection to IP68
- Hands free operation
- Single or Dual button auto dial options with remote programming
- The phone will ringing loudly when there is a incoming call.
- With auto-answer feature after 5 ringing, Auto- release the line when the other side cut off the line.
- Built-in amplifier, with external ringer and lamp:15W (30W optional), broadcasting feature
- Wall / Pillar mounting, simple installation
- CE, FCC, RoHS, ISO9001 compliant
- Power supply: Phone line powered ( Analogue)
Technical Parameters
| Temperature | -40℃~75℃ |
| Relative humidity | 10%~95% |
| Power Supply | Analog Telephone Network |
| Supply Voltage | 24 VDC to 65 VDC |
| Supply Current | 20 mA DC to 100 mA DC |
| Atmospheric pressure | 86~106Kpa |
| Environmental noise | ≤60dB(A) |
| Ringing tone level | ≥80dB |
| Low frequency | 697-941Hz |
| High frequency group | 1209-1477Hz |
| Frequency offset | Not more than±1.5% |
| Call transmission indicators | SLR≤12,RLR≤-1,STMR≥10 |
| Output Impedance | 600Ω |
| Dial mode | full keyboard dial / off-hook automatic dial |
| Communication distance | 5 kilometers |
| Power supply | telephone line |
Application
This weatherproof Analog Version Industrial Telephone With Beacon is very popular for Tunnels, Mining, Marine, Underground, Metro stations, Railway platform, Highway side, Hotels, Parking lots, Steel Plants, Chemical plants, Power plants and related heavy duty industrial application, etc.
Package
| Unit Size: | 373 *282 *137(mm) |
| Carton Dimension: | 400 *352 *150(mm) |
| Packaging materials: | corrugated box, pearl cotton lining |
| Net Weight: | 6KG |
| Gross weight: | 7.5KG |
FAQ
Q: Do you provide an installation service?
A: No, we do not install products, but they are very straightforward to install, please kindly contact us if unsure.
Q: Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty to our products against delivery.
Q: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%. Secondly,
during the guarantee period, we will send new one with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
