| Brand Name: | Yuantong |
| Model Number: | YT-IPSG/EX10 |
| MOQ: | 1 |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs per month |

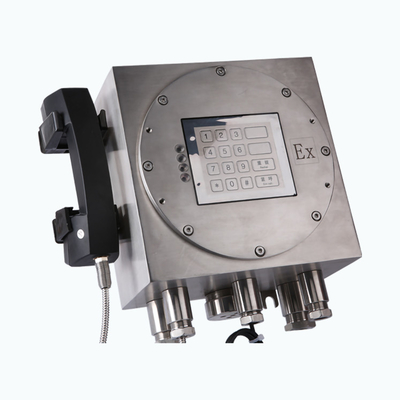

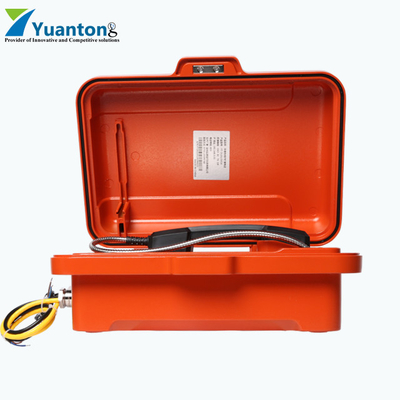

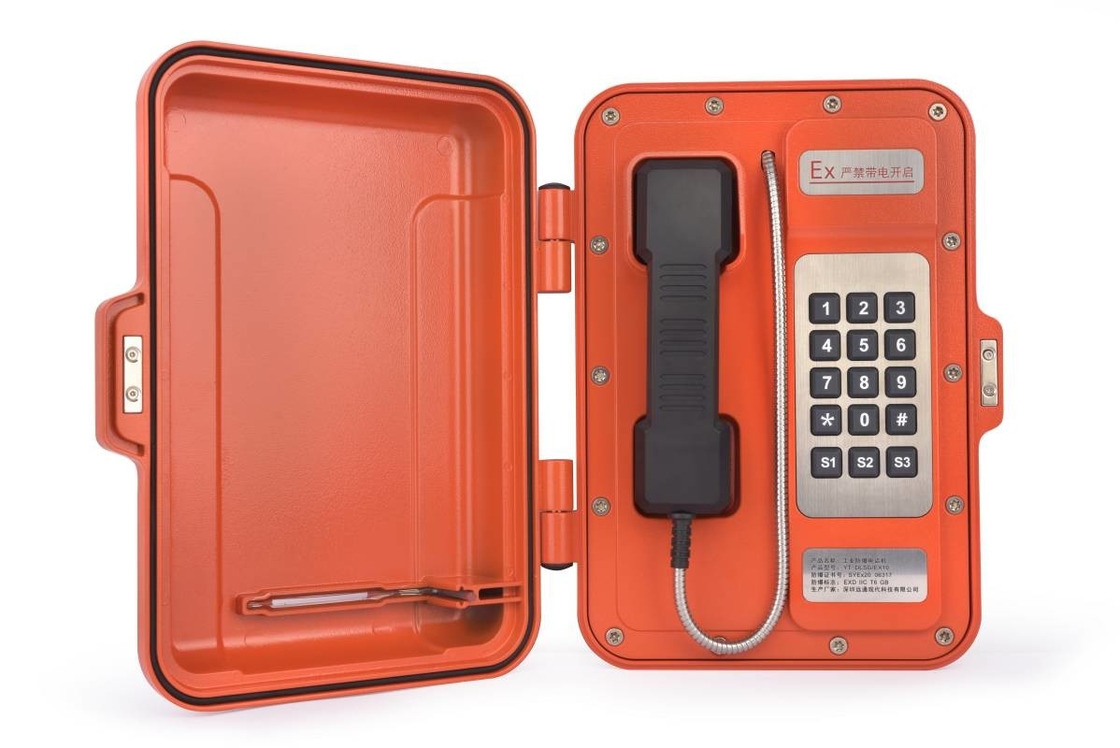

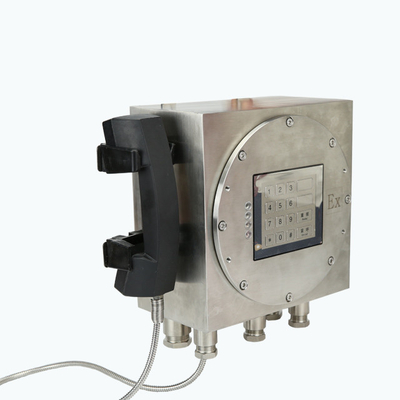

ATEX Explosion Proof Telephone High Frequency 1209Hz To 1477Hz
Analog Explosion Proof Telephone Heavy Duty Phone ATEX Telephone
The explosion-proof phone uses a zinc-aluminum alloy die-casting shell with a thickness of 5mm, which is sturdy and durable, and has good sealing performance. The hose with stainless steel is designed with anti-destructive tensile steel rope, and the tensile strength is more than 200KG.
Industrial grade silicone keyboard, imported waterproof glue with strong corrosion resistance, high viscosity, high temperature resistance, explosion-proof grade: ExD ib IIC T6 Gb
With a magnetic gravity door cover, it can completely prevent the entry of dust and moisture, thereby extending the life cycle of the product and improving the reliability and stability of the product. All electronic components are industrial-grade products that are resistant to high and low temperatures, so they can be used normally in extreme temperature environments ranging from 70 degrees to minus 30 degrees.
Features
1. Material: aluminum alloy
2. With explosion-proof mark "Ex" explosion-proof grade: ExD ib IIC T6 Gb
3. Red is the standard color, optional colors are available upon request
4. With magnetic gravity door cover, it can completely prevent dust and moisture from entering, good sealing, waterproof and moisture-proof
5. Industrial grade silicone keys, strong corrosion resistance, wear resistance, anti-aging
6. Anti-violence damage receiver, anti-knock
7. The handle is made of special ABC/PC material, which has strong knock resistance and will not break or deform under knock, high temperature, low temperature, twist, etc.
8. Zinc-aluminum alloy die-casting shell, durable and strong impact resistance
9. All electronic components are resistant to high and low temperature, and can be used normally in extreme temperature environments ranging from 70 degrees to minus 30 degrees.
10. Wall-mounted installation, easy to install
Technical Parameters
|
item |
Explosion Proof Telephone |
|
Type |
industrial telephone |
|
Material |
Zinc-Aluminum Aloy Die-Casting Shell |
|
Colors |
standard color Red or Customizes |
|
Installation |
Wall mounted or Pole Mounting |
|
Temperature |
30℃~70℃ |
|
Atmospheric pressure |
86~106 Kpa |
|
Relative humidity |
10%~95% |
|
Environmental noise |
≤60dB(A) |
|
Ring tone lever |
≥80dB |
|
Low frequency group |
697-941Hz |
|
High frequency group |
1209-1477Hz |
|
Frequency deviation |
not more than ±1.5% |
Package
|
Unit Size: |
373 *282 *137(mm) |
|
Carton Dimension: |
400 *352 *150(mm) |
|
Packaging materials: |
corrugated box, pearl cotton lining |
|
Net Weight: |
8KG |
|
Gross weight: |
9KG |
FAQ
Q1. How to place an order? What about prices?
A1: Place an inquiry or contact with online service. After receiving your inquiry, we will reply you with prices and information or catalog.
Q2. Can I have my logo printed on the products and packing?
A2: OEM are welcome.
Q3. What is your payment terms?
A3: For sample: PayPal, West Union; for mass order: T/T ,L/C, Paypal, and others
Q4. What would the delivery time of the sample be?
A4: Regularly 3-7 days
Q5. Do you offer guarantee for the products?
A5. Yes, we offer 18months guarantee for our products
|
