| Brand Name: | Yuantong |
| Model Number: | YT-IPSG/EX10 |
| MOQ: | 1 |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs per month |
AC220V Industrial SIP Phone Explosion Proof For Hazardous Locations
Safety Telephone SIP Explosion Proof Telephone Industrial EX Voip Phone Hazardous Locations

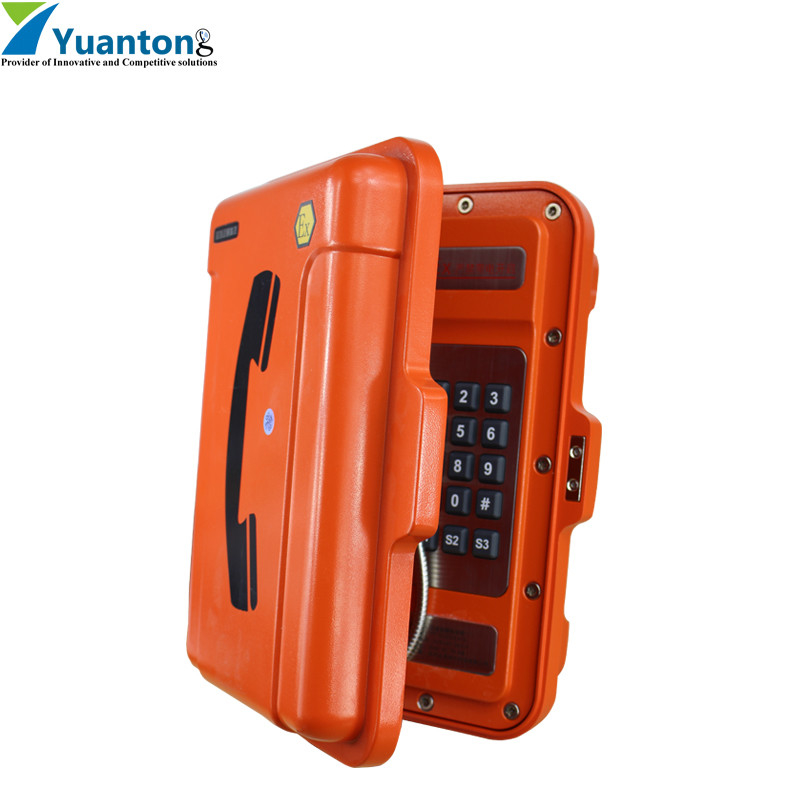

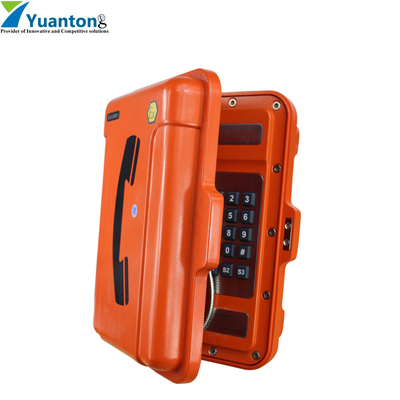

The Explosion Proof Telephone is an emergency phone that specifically contained within a corrosion resistant cast aluminium alloy weatherproof case. With a door providing complete protection against dust and moisture ingress, resulting in a highly reliable product and ensure that the primary function of communications is always maintained. Extremely easy to install.
Features
Shell: Aluminum alloy casting, strong anti-riot, the surface is sprayed with imported reflective paint, with reflective function, easy to find
Door cover: Stainless steel shrapnel and stainless steel shaft. Can automatically spring back, the lock is automatically buckled
Handle: Special ABC/PC plastic, strong anti-knocking, tensile, and riot resistance, and will not break or deform when it withstands knocks, high temperature, low temperature, twisting, etc.
All accessories of the handle transmitter and receiver, keyboard, buzzer, circuit board, and shell adopt multi-layer waterproof and dust-proof structure. Three-level waterproof and dust-proof function, the protection level of the whole machine reaches the national standard GB4208-93 IP67;
Hook: The hook uses a magnetic induction switch with a service life of ≥500,000 times
Buttons: silicone buttons, wear-resistant, corrosion-resistant, and anti-aging
Technical Parameters
|
item |
Explosion Proof Telephone |
|
Type |
industrial telephone |
|
Material |
Zinc-Aluminum Aloy Die-Casting Shell |
|
Colors |
standard color Red or Customizes |
|
Installation |
Wall mounted or Pole Mounting |
|
Temperature |
30℃~70℃ |
|
Atmospheric pressure |
86~106 Kpa |
|
Relative humidity |
10%~95% |
|
Environmental noise |
≤60dB(A) |
|
Ring tone lever |
≥80dB |
|
Low frequency group |
697-941Hz |
|
High frequency group |
1209-1477Hz |
|
Frequency deviation |
not more than ±1.5% |
Application
Yuantong Telephones have wide applications, like metro, highway, railway, marine, mining, tunnel, steel plant, chemical plant,power plant, oil & gas pipe and related industrial application, Gas Filling station, Coal Mine etc.
We offer industrial grade outdoor Explosion Proof Telephone with a rugged, Explosion Proof telephone enclosure. Housed in aluminum alloy box and manufactured to a high standard, this Waterproof Phone offers increased resistance to vandalism, and ensure that the primary function of communications is always maintained. It is suitable for use in Tunnel, metro, railway, LRT, speedway, marine, ship,offshore, mine, power plant, bridge etc. Extremely easy to install.
Company Information
Shenzhen Yuantong Modern Technology Co., Ltd.was established in 2013.Main business: industrial telephones. Products include fiber optic
phones, IP phones, video phones, and SIP Telephones, industrial analog telephones, WIFI telephones, satellite telephones,
explosion-proof telephones, dispatch management systems, etc. The products are mainly used in highways, urban underground
comprehensive pipe corridors, railways, mining, petroleum, metallurgy, chemical, electric power and other fields.
|
