Vandal Resistant Telephone
>
Cold Rolled Steel Jail Telephone

Cold Rolled Steel Jail Telephone

Brand Name: Yuantong
Model Number: YT-PR105
MOQ: 1 Set
Price: Negotiable
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 pcs per month
Detail Information
Place of Origin:
China, Shenzhen
Certification:
CE, FCC, ISO9001, RoHS compliant
Supply Ability:
1000 pcs per month
Highlight:

CE Jail Telephone

,

Cold Rolled Steel Jail Telephone

,

12V DC Vandal Resistant Telephone

Product Description

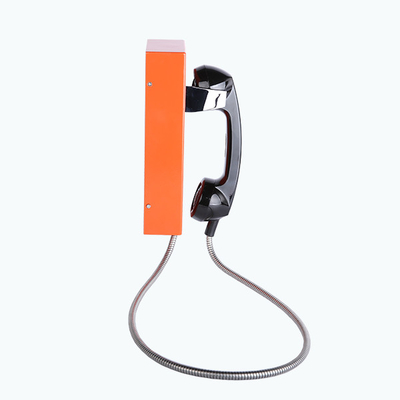

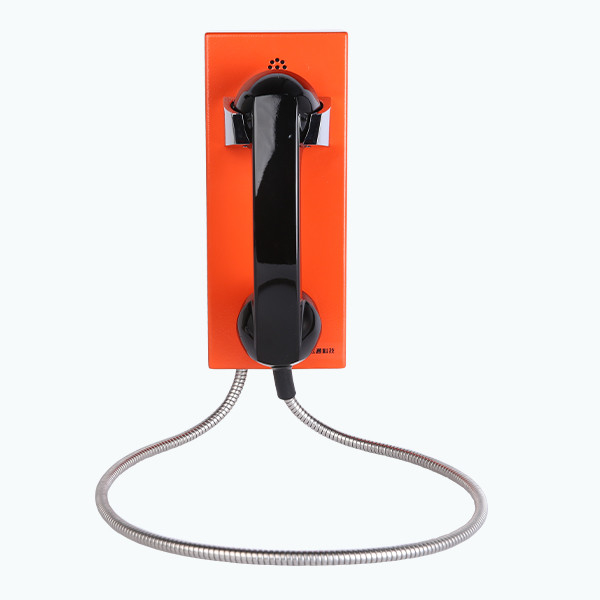

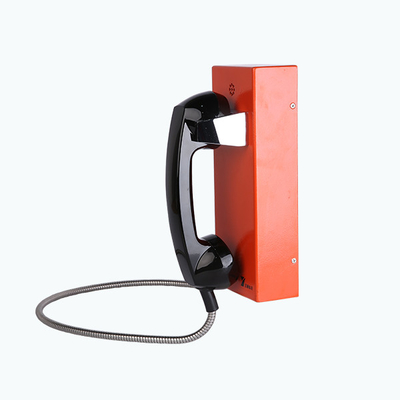

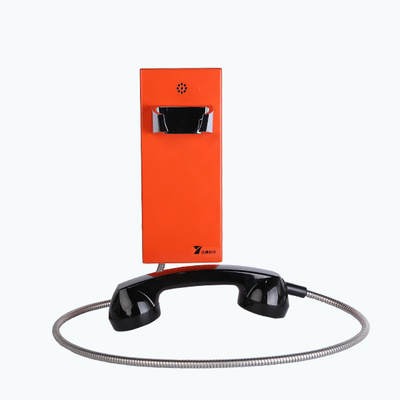

Cold Rolled Steel Jail Telephone 0

The prison phone has a solid appearance that prevents damage and long service life. Wall-mounted installation methods, the phone is installed on the wall, facilitating prison staff, saving space, promoting management. We not only provide telephone equipment, but also provide a telephone communication solution, our independent IP solution prisoner call. It has a simple installation, simple handle, stable operation, and strong compatibility. Phone accessories and mobile phone shell color can be customized







MAIN FEATURES

  1. Standard Analogue/ SIP/ GSM/ 3G, 4G Phone
  2. Robust housing, Adopt High quality Cold rolled steel, durable, anti-violence damage Weather proof protection IP54~IP66
  3. Vandal resistant handset and armored cord
  4. Programmable for auto-dial
  5. Can be programmed remotely by tone phone or locally via keypad
  6. Non-volatile memory
  7. Wall mounting, simple installation
  8. Inductive coupler fitted as standard for hard of hearing
  9. Phone line powered (Analog)
  10. External Power supply or PoE (SIP phone)
  11. CE, FCC, ISO9001, RoHS compliant







Telephone Paramenters



SIP VoIP Version

  • Speech Coding: G.711A/ u, G.7321 high/ low, G.729 a/ b, G.722, G.722.1, G726.
  • Echo Cancellation Code: G.167 /G.168
  • Circumstance noise: ≤ 60dB(A).
  • Sound Level of Ringing: >90dB(A).
  • Auxiliary Contact: 1Aux output, dry contact.
  • Power Supply: AC110--240V or PoE .
  • Rated Carry Current:1A
  • DTMF: VoIP SIP Info DTMF Relay, RFC2833
  • LAN Protocols: Power over Ethernet(PoE, 802.3af)
  • WLAN: IEE802.3af, Network Access Control: IEEE802.1x
  • IP Protocols: IPV4, UDP, DHCP, SIP.
  • MTBF:100,000 hours. MTTR: 2 hours.

Analog version

  • Ambient Temperature: -30 ~ +70 degree celsius
  • Relative Humidity: 10% ~95%
  • Atmospheric Pressure: 86 - 106kpa
  • Sound Level of Ringing: >80dB(A). 1w speaker
  • Standard Frequency: Low frequency 697, 770, 852, 941Hz. High frequency1209, 1336, 1477Hz.
  • Frequency Deviation: -1.5% ~ +1.5%
  • Call Transmission Index: (5km) SLR<12, RLR<-1, STMR>10, output impedance is 600ohm.
  • Applicable for various types of PABX with feeding voltage of 33-60V
  • MTBF:100,000 hours.
  • MTTR: 2 hours.


2G 3G 4G version

  • GSM PCB Support: 2G, 3G, 4G modules.
  • Solar Panels: 18w/30w/55w (options)
  • Working Frequency Rage: GSM Frequency 850/900/1800/1900MHZ
  • (WCDMA850/1900Mhz is an option).
  • Suopported: SMS or GPRS
  • Sound Level of Ringing: >80dB(A). 2w speaker
  • Power Supply: 12V DC/ 110/220V AC, battery, solar.
  • Antenna: Solder pads for Primary, Rx-diversity and GNSS antennas.
  • Humidity Conditions: 10% - 95%
  • MTBF:100,000 hours.
  • MTTR: 15min.



PACKAGE



Dimensions
Unit size:260*150*130mm Unit: N.W:2.14KG



Package Reference
1pcs packing box size: 340*235*165mm Unit N.W:2.14KG Unit G.W:3KG



Packaging materials: pearl cotton, carton;
