| Brand Name: | Yuantong |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 5000 pcs per month |

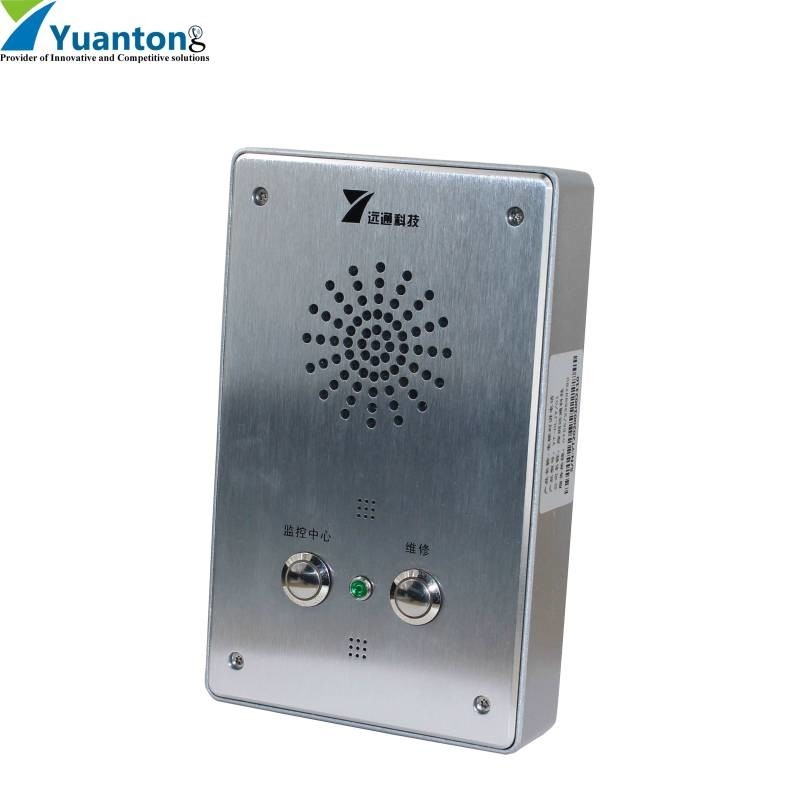

Flush Panel Hands-Free VoIP Stainless Steel Elevator Emergency Telephone
Elevator Intercom is housed in Stainless Steel box generally refer to emergency calls for outward assistance when the elevator fails. Based on the need of emergency assistance, the elevator telephone is required to have multi-party calling, automatic dialing and other characteristics. At the same time, considering the complicated environment in the elevator car, the telephone itself must also have the characteristics of anti-destruction, anti-knocking and anti-interference. These telephones offer increased resistance to vandalism, and ensure that the primary function of communications is maintained at all times.
Main Features
Analogue Version
Power Supply- From the analogue telephone network
Supply Voltage- 24 VDC to 65 VDC
Supply Current- 20 mA DC to 100 mA DC
Ringer Volume- – 80dB(A) at a distance of 1 m – 110dB(A) at a distance of 1 m (for external horn speaker)
Dialing Method- DTMF mode in accordance with ITU-T recommendation Q.23
SIP Version
Power Supply- PoE or 12V DC
Power Consumption- -Idle:1.5W -Active:1.8W
SIP Protocol- SIP 2.0 (RFC3261)
Support Codec- G.711 A/U, G.722 8000/16000, G.723, G.729
Communication Type- Full duplex
Ringer Volume- – 90~95dB(A) at a distance of 1 m – 110dB(A) at a distance of 1 m (for external horn speaker)
| Voltage | DC5V/1A |
| Standby working current | ≤300MA |
| Frequency Response | 250～3000 Hz |
| Ringing level | ≥85dB(A) |
| Anti-corrosion grade | WF2 |
| Ambient temperature | -20～+60℃ |
| Air pressure | 80～110KPa |
| Relative humidity | ≤95% |
| Lead hole | 1-Ø10 |
| Installation method |
Embedded installation |
Applications
Elevator Intercom is ideal for parking lots, lifts/elevators, prisons, railway/metro platforms, hospitals, police stations, ATM machines, stadiums, outside building etc.
Package
| Unit Size: | 100 *68 *50(mm) |
| Carton Dimension: | 180 *98 *80(mm) |
| Packaging materials: | corrugated box, pearl cotton lining |
| Net Weight: | 1KG |
| Gross weight: | 1.5KG |
|
|
| Brand Name: | Yuantong |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Unit Size:100 *68 *50(mm)，Carton Dimension:180 *98 *80(mm)，Packaging materials:corrugated box, pearl cotton lining |
| Payment Terms: | L/C, T/T, Western Union |
Flush Panel Hands-Free VoIP Stainless Steel Elevator Emergency Telephone
Elevator Intercom is housed in Stainless Steel box generally refer to emergency calls for outward assistance when the elevator fails. Based on the need of emergency assistance, the elevator telephone is required to have multi-party calling, automatic dialing and other characteristics. At the same time, considering the complicated environment in the elevator car, the telephone itself must also have the characteristics of anti-destruction, anti-knocking and anti-interference. These telephones offer increased resistance to vandalism, and ensure that the primary function of communications is maintained at all times.
Main Features
Analogue Version
Power Supply- From the analogue telephone network
Supply Voltage- 24 VDC to 65 VDC
Supply Current- 20 mA DC to 100 mA DC
Ringer Volume- – 80dB(A) at a distance of 1 m – 110dB(A) at a distance of 1 m (for external horn speaker)
Dialing Method- DTMF mode in accordance with ITU-T recommendation Q.23
SIP Version
Power Supply- PoE or 12V DC
Power Consumption- -Idle:1.5W -Active:1.8W
SIP Protocol- SIP 2.0 (RFC3261)
Support Codec- G.711 A/U, G.722 8000/16000, G.723, G.729
Communication Type- Full duplex
Ringer Volume- – 90~95dB(A) at a distance of 1 m – 110dB(A) at a distance of 1 m (for external horn speaker)
| Voltage | DC5V/1A |
| Standby working current | ≤300MA |
| Frequency Response | 250～3000 Hz |
| Ringing level | ≥85dB(A) |
| Anti-corrosion grade | WF2 |
| Ambient temperature | -20～+60℃ |
| Air pressure | 80～110KPa |
| Relative humidity | ≤95% |
| Lead hole | 1-Ø10 |
| Installation method |
Embedded installation |
Applications
Elevator Intercom is ideal for parking lots, lifts/elevators, prisons, railway/metro platforms, hospitals, police stations, ATM machines, stadiums, outside building etc.
Package
| Unit Size: | 100 *68 *50(mm) |
| Carton Dimension: | 180 *98 *80(mm) |
| Packaging materials: | corrugated box, pearl cotton lining |
| Net Weight: | 1KG |
| Gross weight: | 1.5KG |
