| Brand Name: | Yuantong |
| Model Number: | YT-IPSG/EX10 |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000 sets per month |

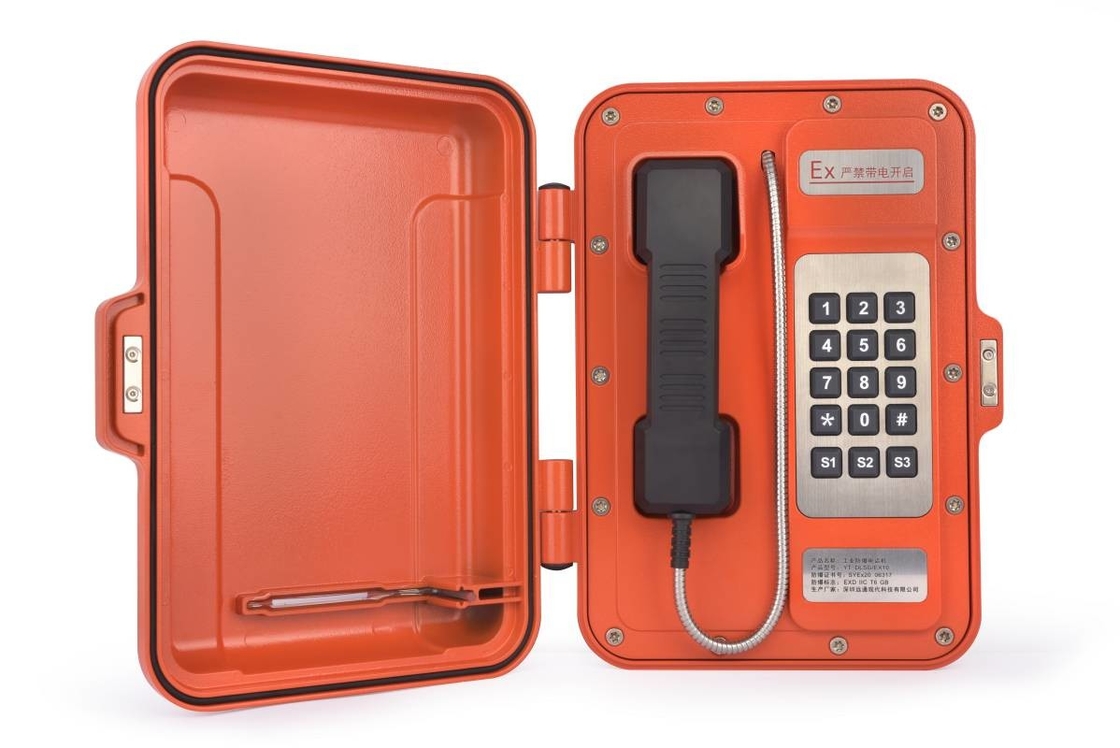

SIP Explosion Proof Telephone
Explosion Proof SIP Telephone Industrial Wall Mount Telephone Ex Protection Telephone
The Explosion Proof Telephone is an emergency phone that specifically contained within a corrosion resistant cast aluminium alloy weatherproof case. With a door providing complete protection against dust and moisture ingress, resulting in a highly reliable product and ensure that the primary function of communications is always maintained. Extremely easy to install.
Features
1. Standard analog phone, Phone line powered. Suitable for explosive gas atmospheres Zone
2. Aluminum alloy die-casting shell, high mechanical strength, and strong impact resistance.
3. Heavy Duty handset with hearing Aid compatible receiver, Noise-canceling microphone.
4. Zinc alloy keypad and Magnetic reed hook-switch.
5. Weatherproof protection to IP65
6. Temperature range from -30 degree to +70 degree.
7. Powder coated in UV stabilized polyester finish.
8. Wall mounted, Simple installation.
9. Multiple housings and colors.
10. CE, FCC, RoHS, ISO9001 compliant.
Technical Parameters
|
item |
Explosion Proof Telephone |
|
Type |
industrial telephone |
|
Material |
Zinc-Aluminum Aloy Die-Casting Shell |
|
Colors |
standard color Red or Customizes |
|
Installation |
Wall mounted or Pole Mounting |
|
Temperature |
30℃~70℃ |
|
Atmospheric pressure |
86~106 Kpa |
|
Relative humidity |
10%~95% |
|
Environmental noise |
≤60dB(A) |
|
Ring tone lever |
≥80dB |
|
Low frequency group |
697-941Hz |
|
High frequency group |
1209-1477Hz |
|
Frequency deviation |
not more than ±1.5% |
Application
We offer industrial grade outdoor Explosion Proof Telephone with a rugged, Explosion Proof telephone enclosure. Housed in aluminum alloy box and manufactured to a high standard, this Waterproof Phone offers increased resistance to vandalism, and ensure that the primary function of communications is always maintained. It is suitable for use in Tunnel, metro, railway, LRT, speedway, marine, ship,offshore, mine, power plant, bridge etc. Extremely easy to install.
Package
|
Unit Size: |
373 *282 *137(mm) |
|
Carton Dimension: |
400 *352 *150(mm) |
|
Packaging materials: |
corrugated box, pearl cotton lining |
|
Net Weight: |
8KG |
|
Gross weight: |
9KG |
|
|
| Brand Name: | Yuantong |
| Model Number: | YT-IPSG/EX10 |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Phone size: 373 *282 *137(mm) Packing material: corrugated box, pearl cotton lining Gross weight: 9KG Net weight: about 8KG |
| Payment Terms: | L/C, T/T, Western Union |
SIP Explosion Proof Telephone
Explosion Proof SIP Telephone Industrial Wall Mount Telephone Ex Protection Telephone
The Explosion Proof Telephone is an emergency phone that specifically contained within a corrosion resistant cast aluminium alloy weatherproof case. With a door providing complete protection against dust and moisture ingress, resulting in a highly reliable product and ensure that the primary function of communications is always maintained. Extremely easy to install.
Features
1. Standard analog phone, Phone line powered. Suitable for explosive gas atmospheres Zone
2. Aluminum alloy die-casting shell, high mechanical strength, and strong impact resistance.
3. Heavy Duty handset with hearing Aid compatible receiver, Noise-canceling microphone.
4. Zinc alloy keypad and Magnetic reed hook-switch.
5. Weatherproof protection to IP65
6. Temperature range from -30 degree to +70 degree.
7. Powder coated in UV stabilized polyester finish.
8. Wall mounted, Simple installation.
9. Multiple housings and colors.
10. CE, FCC, RoHS, ISO9001 compliant.
Technical Parameters
|
item |
Explosion Proof Telephone |
|
Type |
industrial telephone |
|
Material |
Zinc-Aluminum Aloy Die-Casting Shell |
|
Colors |
standard color Red or Customizes |
|
Installation |
Wall mounted or Pole Mounting |
|
Temperature |
30℃~70℃ |
|
Atmospheric pressure |
86~106 Kpa |
|
Relative humidity |
10%~95% |
|
Environmental noise |
≤60dB(A) |
|
Ring tone lever |
≥80dB |
|
Low frequency group |
697-941Hz |
|
High frequency group |
1209-1477Hz |
|
Frequency deviation |
not more than ±1.5% |
Application
We offer industrial grade outdoor Explosion Proof Telephone with a rugged, Explosion Proof telephone enclosure. Housed in aluminum alloy box and manufactured to a high standard, this Waterproof Phone offers increased resistance to vandalism, and ensure that the primary function of communications is always maintained. It is suitable for use in Tunnel, metro, railway, LRT, speedway, marine, ship,offshore, mine, power plant, bridge etc. Extremely easy to install.
Package
|
Unit Size: |
373 *282 *137(mm) |
|
Carton Dimension: |
400 *352 *150(mm) |
|
Packaging materials: |
corrugated box, pearl cotton lining |
|
Net Weight: |
8KG |
|
Gross weight: |
9KG |
