| Brand Name: | Yuantong |
| MOQ: | 1 |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs per month |

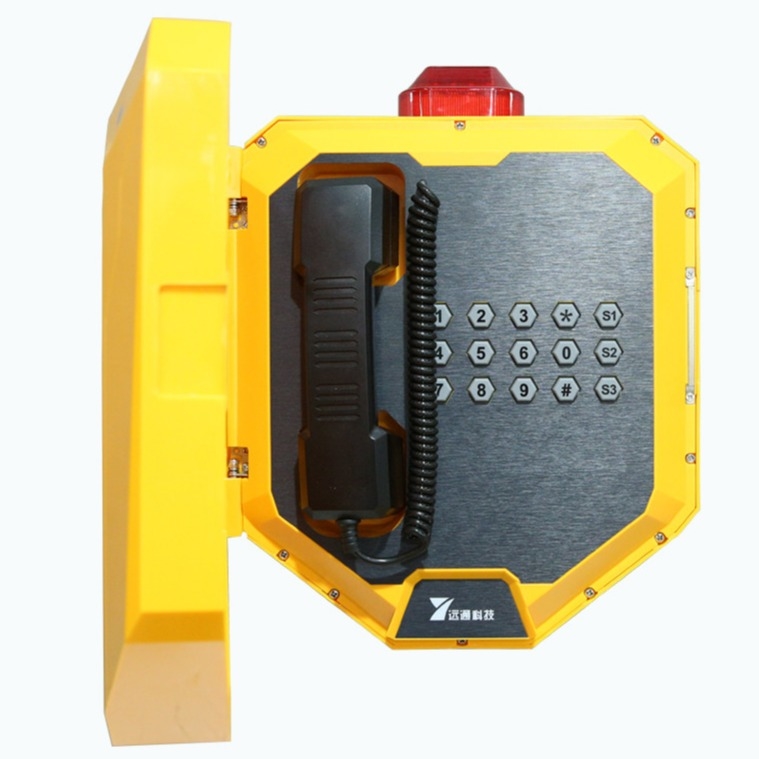

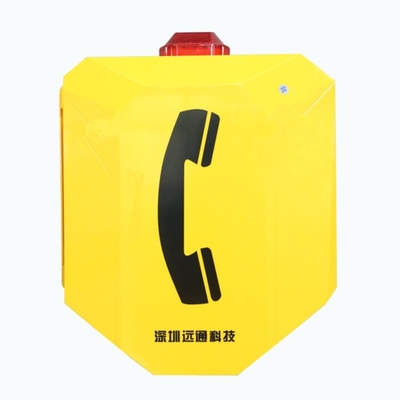

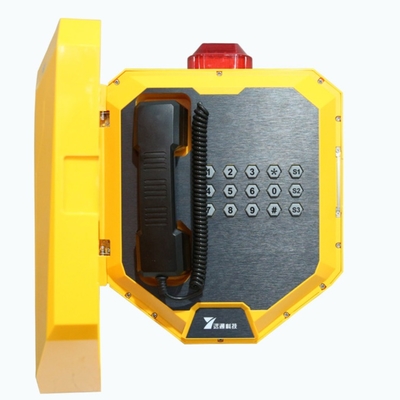

The YT-DL series of waterproof telephones are made of nylon and fiber waterproof housing with a magnetic door cover to prevent dust and moisture from entering, thereby prolonging the product's life cycle and improving its reliability and stability of the product. It is especially suitable for installation in areas with high dust, humidity, high noise, and outdoors.
Main Features
Technical Specification
Analogue Version
Power Supply From the analogue telephone network
Supply Voltage 24 VDC to 65 VDC
Supply Current 20 mA DC to 100 mA DC
Ringer Volume - 80dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)
Dialing Method DTMF mode in accordance with ITU-T recommendation Q.23.
SIP Version
Power Supply PoE or 12V DC
Power Consumption -Idle:1.5W
-Active:1.8W
SIP Protocol SIP 2.0 (RFC3261)
Support Codec G.711 A/U, G.722 8000/16000, G.723, G.729
Communication Type Full duplex
Ringer volume - 90~95dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)
Ambient conditions
Protection type IP 66 as per EN60529
Operating temperature -25°C to +70°C
Storage temperature -25°C to +85°C
Application
We offer industrial grade outdoor weatherproof telephones IP66 with red alarm can be placed on the outdoor, industrial work area with columns. The industrial-grade red light station can be placed in any industrial area or hazardous area. It is Weatherproof, moisture-proof, corrosion-resistant.
Dimensions
(Measured in mm) Unit size: 305*337*130(mm)
Package Reference
Packaging materials: pearl cotton, carton;
Telephone 1pc in one Carton size: 35*33*20cm; G.W.: 4.8KG; N.W.: 5.5KG
|
|
| Brand Name: | Yuantong |
| MOQ: | 1 |
| Packaging Details: | Carton |
| Payment Terms: | T/T |
The YT-DL series of waterproof telephones are made of nylon and fiber waterproof housing with a magnetic door cover to prevent dust and moisture from entering, thereby prolonging the product's life cycle and improving its reliability and stability of the product. It is especially suitable for installation in areas with high dust, humidity, high noise, and outdoors.
Main Features
Technical Specification
Analogue Version
Power Supply From the analogue telephone network
Supply Voltage 24 VDC to 65 VDC
Supply Current 20 mA DC to 100 mA DC
Ringer Volume - 80dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)
Dialing Method DTMF mode in accordance with ITU-T recommendation Q.23.
SIP Version
Power Supply PoE or 12V DC
Power Consumption -Idle:1.5W
-Active:1.8W
SIP Protocol SIP 2.0 (RFC3261)
Support Codec G.711 A/U, G.722 8000/16000, G.723, G.729
Communication Type Full duplex
Ringer volume - 90~95dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)
Ambient conditions
Protection type IP 66 as per EN60529
Operating temperature -25°C to +70°C
Storage temperature -25°C to +85°C
Application
We offer industrial grade outdoor weatherproof telephones IP66 with red alarm can be placed on the outdoor, industrial work area with columns. The industrial-grade red light station can be placed in any industrial area or hazardous area. It is Weatherproof, moisture-proof, corrosion-resistant.
Dimensions
(Measured in mm) Unit size: 305*337*130(mm)
Package Reference
Packaging materials: pearl cotton, carton;
Telephone 1pc in one Carton size: 35*33*20cm; G.W.: 4.8KG; N.W.: 5.5KG
